Schneider Electric NSYSBM20208
Metal industrial box plain door H200xW200xD80 IP66 IK10 RAL 7035
- MPN
- NSYSBM20208
- EAN
- 3606480520051
- Category
- PanelSeT SBM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSBM20208?

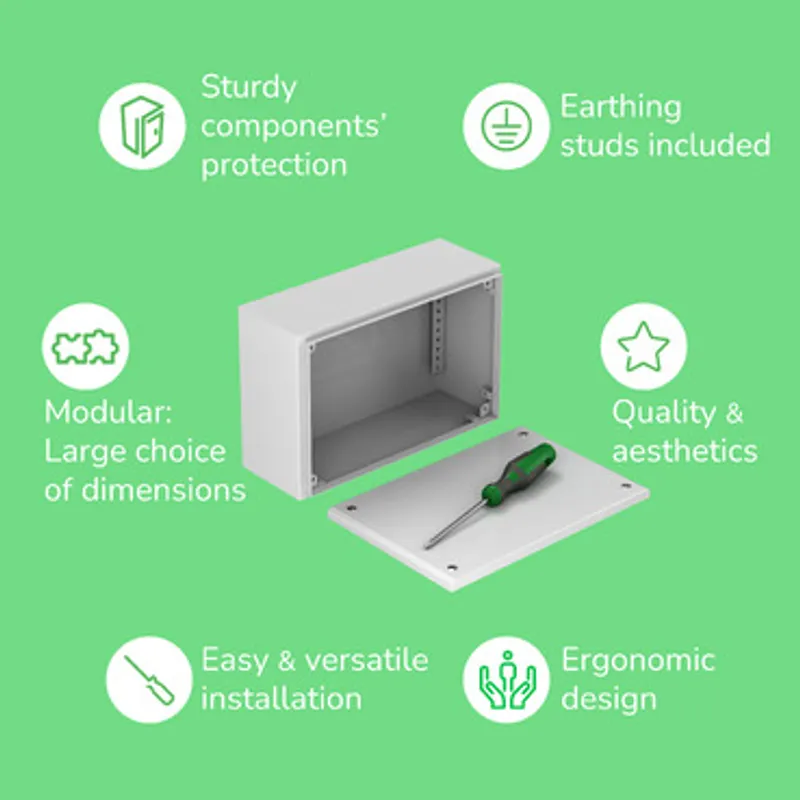

Spacial SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments It is certified by LR, DNV-GL, UL and BV and is wall mounted It is composed of 4 cover screws, a cover and a single piece body which is folded and welded The box has a captive screw PZ2 outside the sealed area It has a nominal height, width and depth of 200mm, 200mm and 80mm respectively and is made of sheet steel with a grey (RAL7035) color and polyester powder surface finish The cover can be easily removed for maintenance purposes with the help of the half turn metal screws The net weight of the enclosure is 1,62kg and it is designed to meet IEC 62208 standards with an IK10 (IEC62262) and IP66 (IEC60529) degree of protection It can be used in a temperature range of -35-60 °C for storage and -35-80 °C for operation Protection IP 66, IK10.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SBM |
| Device application | Multi-purpose |
| Category | Industrial box |
| Device short name | SBM |
| enclosure type | Flat face box |
| Enclosure nominal height | 200 mm |
| Enclosure nominal width | 200 mm |
| Enclosure nominal depth | 80 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 4 cover screw, 1 cover, 1 body |
| Body type | Single piece body folded and welded |
| Type of front cover | Plain door |
| Cover fixing | Half turn metal screw |
| Lock type | Captive screw PZ2 outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Sheet steel |
| Surface finish | Polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV-GL, UL, BV |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage | -35…60 °C |
| Operating temperature | -35…80 °C |
| Net weight | 1.62 kg |
Packaging
| Package 1 | 1 PCE, 21.500 cm × 21.500 cm × 10.000 cm (L × W × H), 1.620 kg |
| Package 2 | 38 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 71.560 kg |
