NSYS3X6420Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 600x400x200mm, IP66
Schneider Electric NSYS3X6625H
Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 600x600x250mm, IP66
- MPN
- NSYS3X6625H
- EAN
- 3606480155253
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X6625H?

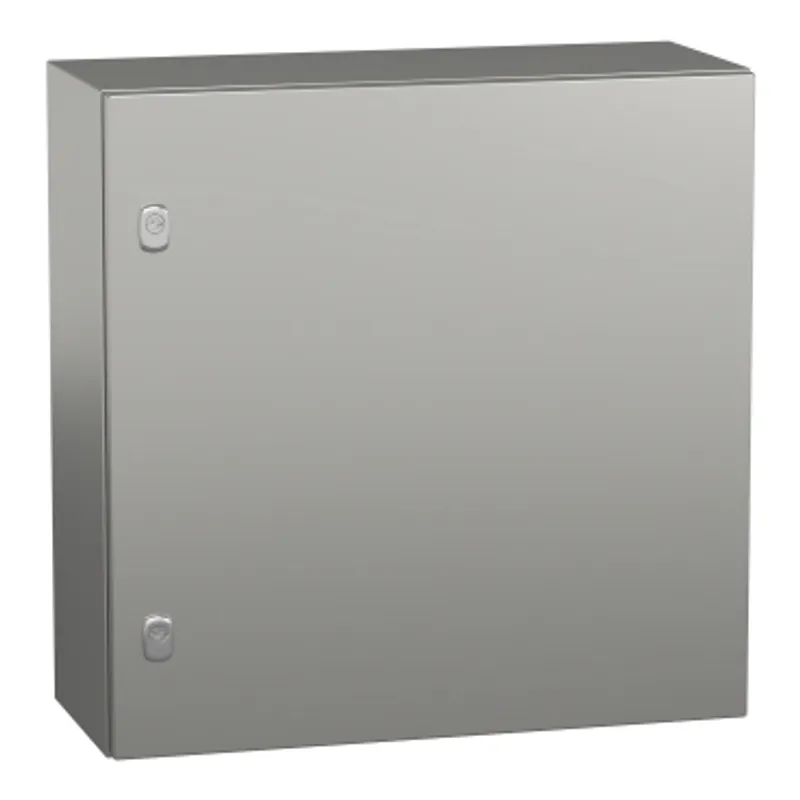

Spacial S3X stainless steel 316L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 600mm, 600mm and 250mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door, two locks and two perforated vertical profiles The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

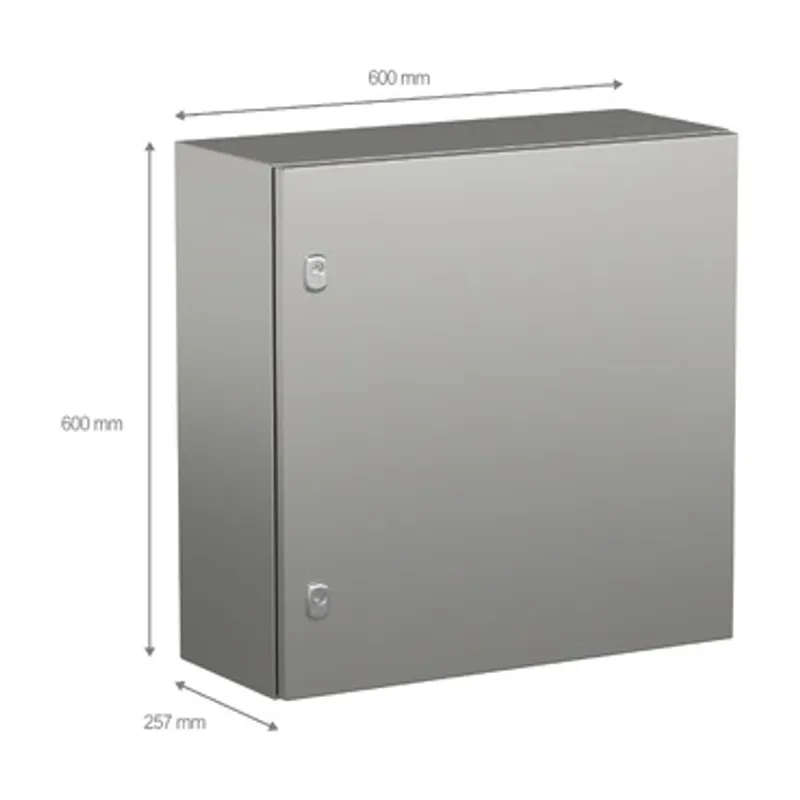

| nominal height | 600 mm |
| nominal width | 600 mm |
| nominal depth | 250 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 14 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 61.000 cm × 61.000 cm × 27.000 cm (L × W × H), 14.000 kg |
| Package 2 | 18 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 267.000 kg |
