Schneider Electric
NSYS3X601230Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, double plain door, 600x1200x300mm, IP55
Schneider Electric NSYS3X6625
Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 600x600x250mm, IP66
- MPN
- NSYS3X6625
- EAN
- 3606480155246
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X6625?
"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It has a nominal height, width and depth of 600mm, 600mm and 250mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 13,902kg" "It has a high resistance to dust and water with an IP66 rating (IEC60529) and it can withstand high impact due its IK10 (IEC62262)" "It is certified to UL 508 type A and CAN/CSA 22 standards"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

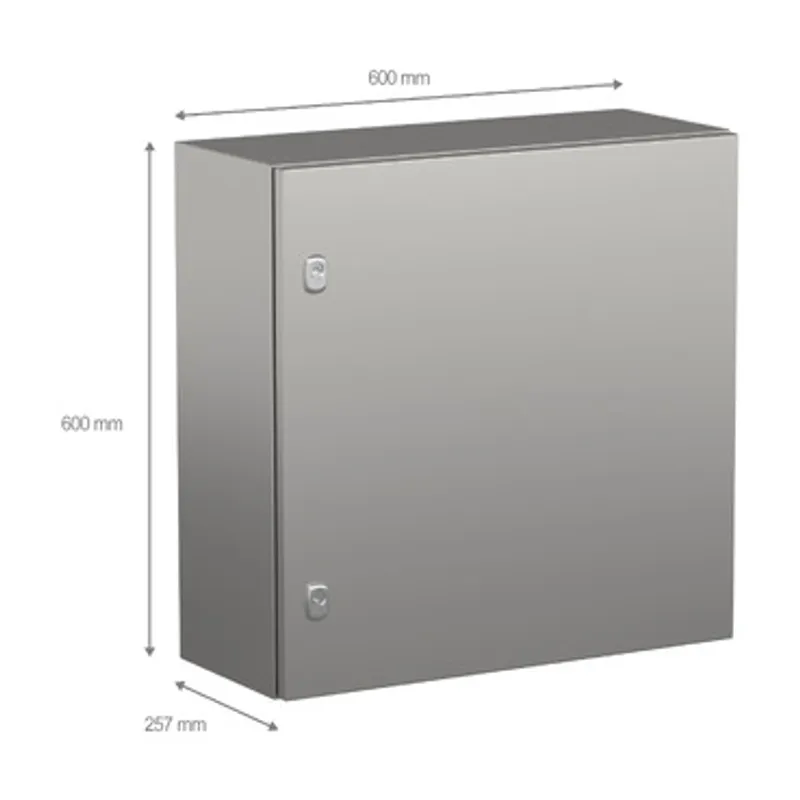

| nominal height | 600 mm |
| nominal width | 600 mm |
| nominal depth | 250 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 door, 2 lock: door, 2 perforated vertical profile drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 13.902 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 61.500 cm × 61.000 cm × 26.500 cm (L × W × H), 13.902 kg |
| Package 2 | 18 PAL, 122.000 cm × 100.000 cm × 198.000 cm (L × W × H), 271.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X6625: frequently asked questions
When can NSYS3X6625 be shipped?
NSYS3X6625 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X6625 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X6625 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X6625, subject to availability and destination.
