Schneider Electric NSYS3X4315H

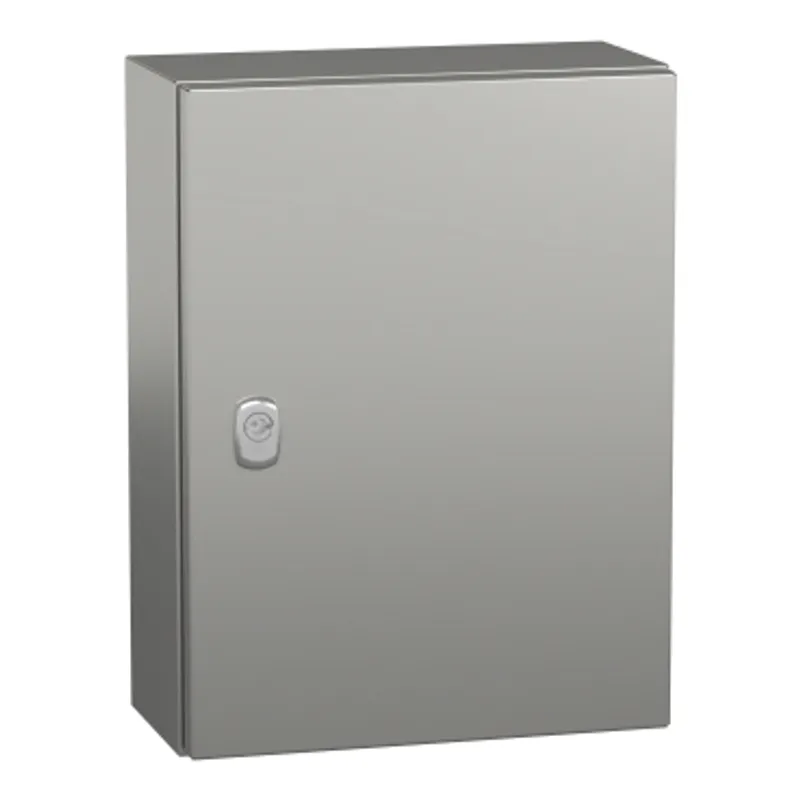

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 400x300x150mm, IP66
- MPN
- NSYS3X4315H
- EAN
- 3606480155109
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X4315H?
"PanelSet S3X is a multi-purpose stainless steel 316L wall-mounting enclosure designed to withstand harsh environments" "It has a nominal height, width and depth of 400mm, 300mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 4,966kg" "It is certified with CAN/CSA 22 and UL 508 type A and has an IK10 and IP66 rating, making it resistant to high impact and dust and water respectively"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 400 mm |
| nominal width | 300 mm |
| nominal depth | 150 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 4.966 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 41.000 cm × 31.000 cm × 16.500 cm (L × W × H), 4.966 kg |
| Package 2 | 64 PAM, 120.000 cm × 100.000 cm × 180.000 cm (L × W × H), 331.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X4315H: frequently asked questions
When can NSYS3X4315H be shipped?
NSYS3X4315H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X4315H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X4315H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X4315H, subject to availability and destination.
