Schneider Electric NSYS3HF6420P

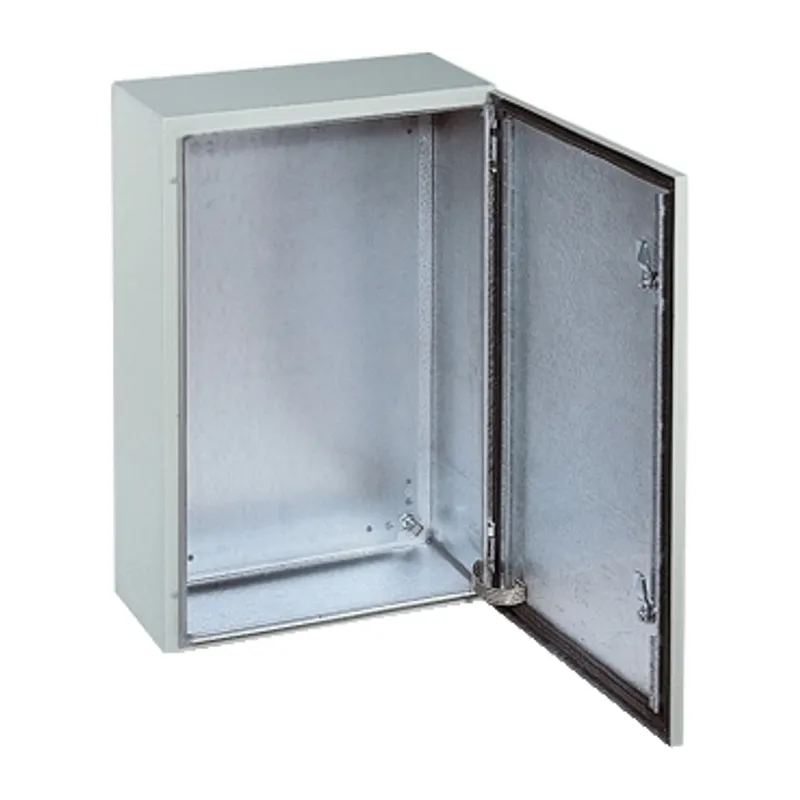

PanelSeT S3HF H600xW400xD200 EMC-immunity IP55 RAL7035
- MPN
- NSYS3HF6420P
- EAN
- 3606480212819
- Category
- PanelSet S3HF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYS3HF6420P (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3HF6420P?
Schneider Electric PanelSeT S3HF H600xW400xD200 EMC-immunity IP55 RAL7035, manufacturer part number NSYS3HF6420P. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3HF |
| Application | Industrial application |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body: aluzinc |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 60529 |
| Net weight | 13.8 kg |
| Electromagnetic compatibility | EMC immunity |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 41.000 cm × 61.500 cm (L × W × H), 15.000 kg |
| Package 2 | 25 PAM, 120.000 cm × 100.000 cm × 182.000 cm (L × W × H), 388.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3HF6420P: frequently asked questions
Can I still buy the NSYS3HF6420P now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYS3HF6420P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYS3HF6420P be shipped?
NSYS3HF6420P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3HF6420P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3HF6420P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3HF6420P, subject to availability and destination.
