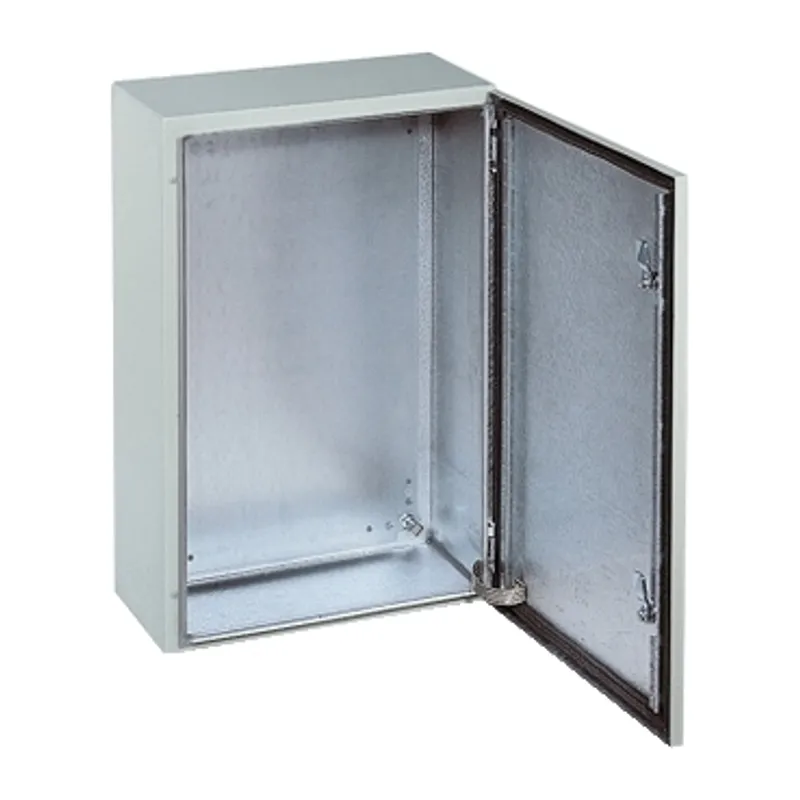

Schneider Electric NSYS3HF4320P
PanelSeT S3HF H400xW300xD200 EMC-immunity IP55 RAL7035
- MPN
- NSYS3HF4320P
- EAN
- 3606480212840
- Category
- PanelSet S3HF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3HF4320P?
"This S3HF is an industrial enclosure designed for wall-mounting" "The body is made of aluzinc with an epoxy-polyester powder surface finish that provides corrosion resistance up to IK10 (IEC 62262) for impact resistance and IP55 (IEC 60529) for dust and water protection" "The enclosure has nominal dimensions of 400mm height, 300mm width, and 200mm depth, with a door opening side of reversible (120°)" "The doors are secured with a 3mm double-bar lock and have a plain door type" "The enclosure is colored grey (RAL 7035)" "The enclosure comes with one body, one door with lock, one mounting plate, and one document holder" "The net weight of the enclosure is 7kg" "The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device" "The enclosure is also certified with EMC immunity and conforms to IEC 60529"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3HF |
| Application | Industrial application |
| Category | Compact enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body: aluzinc |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 60529 |
| Net weight | 7 kg |
| Electromagnetic compatibility | EMC immunity |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 |
Packaging
| Package 1 | 1 PCE, 42.500 cm × 31.000 cm × 21.500 cm (L × W × H), 8.368 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 76.000 cm (L × W × H), 99.200 kg |
