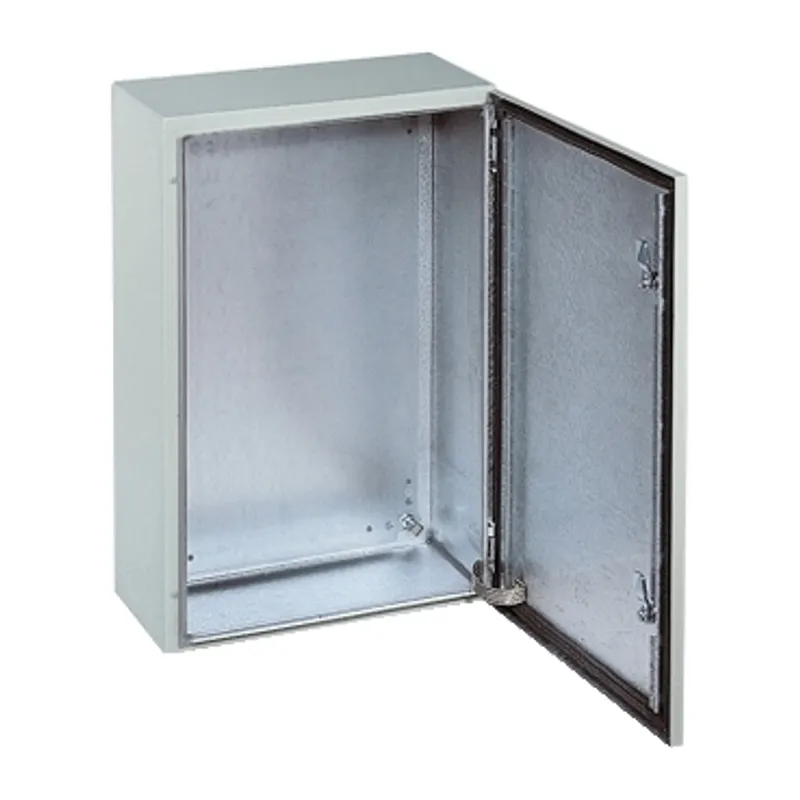

Schneider Electric NSYS3HF10830P
PanelSeT S3HF H1000xW800xD300 EMC-immunity IP55 RAL7035
- MPN
- NSYS3HF10830P
- EAN
- 3606480212864
- Category
- PanelSet S3HF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYS3HF10830P (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3HF10830P?
This S3HF is an industrial enclosure designed for wall-mounting and made of aluzinc The body is made of aluzinc that provides corrosion resistance The doors are reversible up to 120° The enclosure has nominal dimensions of 1000mm height, 800mm width, and 300mm depth, with a canopy height of 48mm The doors are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with one body, one door with lock, and one mounting plate The net weight of the enclosure is 51,7kg The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This S3HF is rated IK10 (IEC 62262) for impact resistance and IP55 (IEC 60529) for dust and water protection It conforms to IEC 60529 and has EMC immunity The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3HF |
| Application | Industrial application |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body: aluzinc |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 60529 |
| Net weight | 51.7 kg |
| Electromagnetic compatibility | EMC immunity |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 81.500 cm × 32.500 cm (L × W × H), 49.000 kg |
| Package 2 | 5 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 258.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3HF10830P: frequently asked questions
Can I still buy the NSYS3HF10830P now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYS3HF10830P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYS3HF10830P be shipped?
NSYS3HF10830P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3HF10830P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3HF10830P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3HF10830P, subject to availability and destination.
