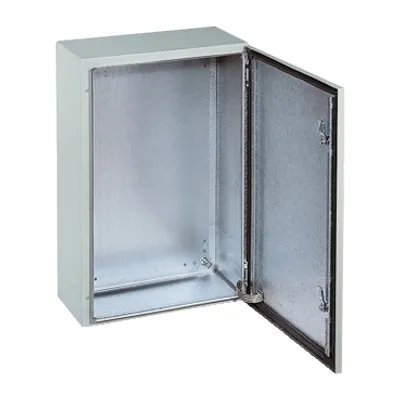

PanelSet S3HF Parts
Compare PanelSet S3HF
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure nominal height | Enclosure nominal width | Enclosure nominal depth | Lock type | Net weight |
|---|---|---|---|---|---|
| NSYS3HF10830P | 1000 mm | 800 mm | 300 mm | 3 points lock, 3 mm double-bar | 51.7 kg |
| NSYS3HF8630P | 800 mm | 600 mm | 300 mm | 3 points lock, 3 mm double-bar | 32 kg |
| NSYS3HF6625P | 600 mm | 600 mm | 250 mm | 3 points lock, 3 mm double-bar | 21 kg |
| NSYS3HF6420P | 600 mm | 400 mm | 200 mm | 3 points lock, 3 mm double-bar | 13.8 kg |
| NSYS3HF4320P | 400 mm | 300 mm | 200 mm | 3 mm double-bar lock | 7 kg |
Common to all listed parts
| Range | PanelSeT |
| Product name | PanelSeT S3HF |
| Application | Industrial application |
| Category | Compact enclosure |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
