Schneider Electric NSYS3DEX10830

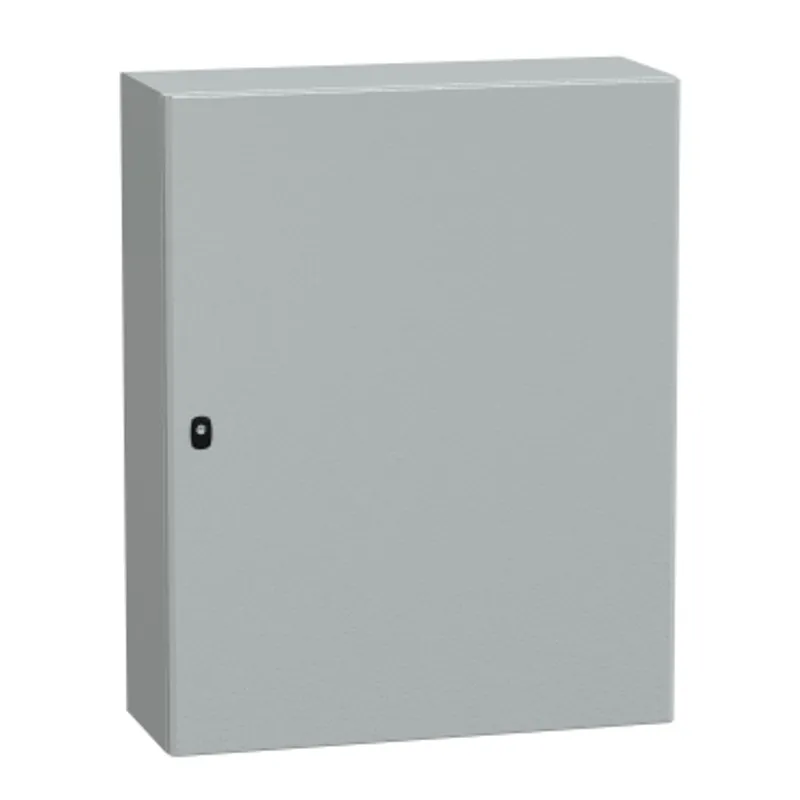

PanelSeT S3DEX (ATEX certified) H1000xW800xD300 .IP66 IK10 RAL7035.
- MPN
- NSYS3DEX10830
- EAN
- 3606480158681
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DEX10830?
"The PanelSeT S3DEX is a wall-mounting ATEX certified enclosure with a steel body, designed for potentially explosive atmosphere applications" "It has a nominal height, width, and depth of 1000mm, 800mm, and 300mm, respectively" "The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish" "It has a plain door with a 3 points lock and 3mm double-bar, allowing it to be opened up to 120° and the opening side is reversible" "The door can be removed for maintenance purposes" "It is compliant with EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009, IK10 (IEC 62262), and IP66 (IEC 60529)" "The net weight of the enclosure is 37kg" "It features a single piece body and gutter-shaped front rail double sheet thickness" "The marking is II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC" "The accessibility for operation is from the front"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DEX |
| Application | ATEX certified application |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Product destination | For potentially explosive atmosphere |
| Device composition | 1 door, 1 lock, body with clamped blind nut |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009 |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC |
| Net weight | 37 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 (enclosures with single door) |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 82.000 cm × 35.500 cm (L × W × H), 32.800 kg |
| Package 2 | 6 PAL, 120.000 cm × 103.000 cm × 176.500 cm (L × W × H), 209.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3DEX10830: frequently asked questions
When can NSYS3DEX10830 be shipped?
NSYS3DEX10830 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DEX10830 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DEX10830 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DEX10830, subject to availability and destination.
