Schneider Electric NSYS3DB3415
PanelSeT S3DB H300xW400xD150. IP66, IK10, RAL7035. No
- MPN
- NSYS3DB3415
- EAN
- 3606480158780
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DB3415?

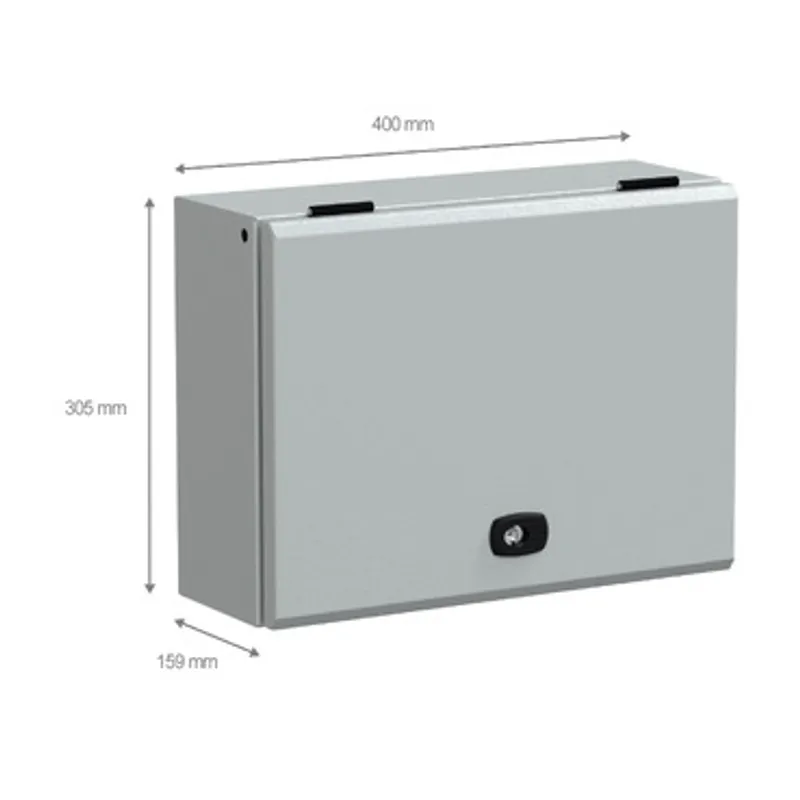

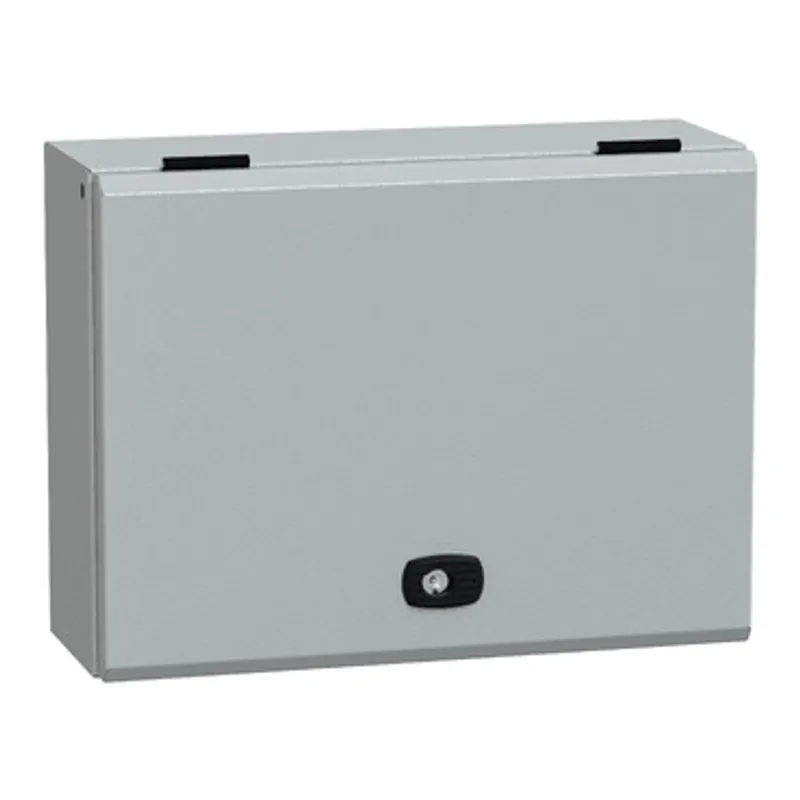

Spacial S3DB is a steel wall-mounting enclosure for a terminal application It has a nominal height, width and depth of 300mm, 400mm and 150mm respectively and a net weight of 4,748kg The enclosure is grey (RAL 7035) with an epoxy-polyester powder surface finish, and has a single piece body with a plain door and a 3mm double-bar lock The door is reversible and can be opened up to 180°, providing easy access to the equipment inside The enclosure is certified by BV, GL, DNV, LR, cUL and UL, and complies with IEC 62208, NEMA 4X/13, IK10 (IEC 62262) and IP66 (IEC 60529) standards It has a gutter-shaped front rail double sheet thickness for increased durability and the door and body can be removed for maintenance purposes Certifications is BV, CUL, DNV, GL, LR, UL.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DB |
| Application | Terminal application |
| Category | Compact enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting, Horizontal or vertical position |
| Product destination | For equipping with terminal |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | BV, GL, DNV, cUL, UL |
| Net weight | 4.748 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 41.500 cm × 30.500 cm × 15.000 cm (L × W × H), 4.748 kg |
| Package 2 | 36 PAM, 120.000 cm × 100.000 cm × 139.000 cm (L × W × H), 186.400 kg |
