Schneider Electric NSYS3DB25515

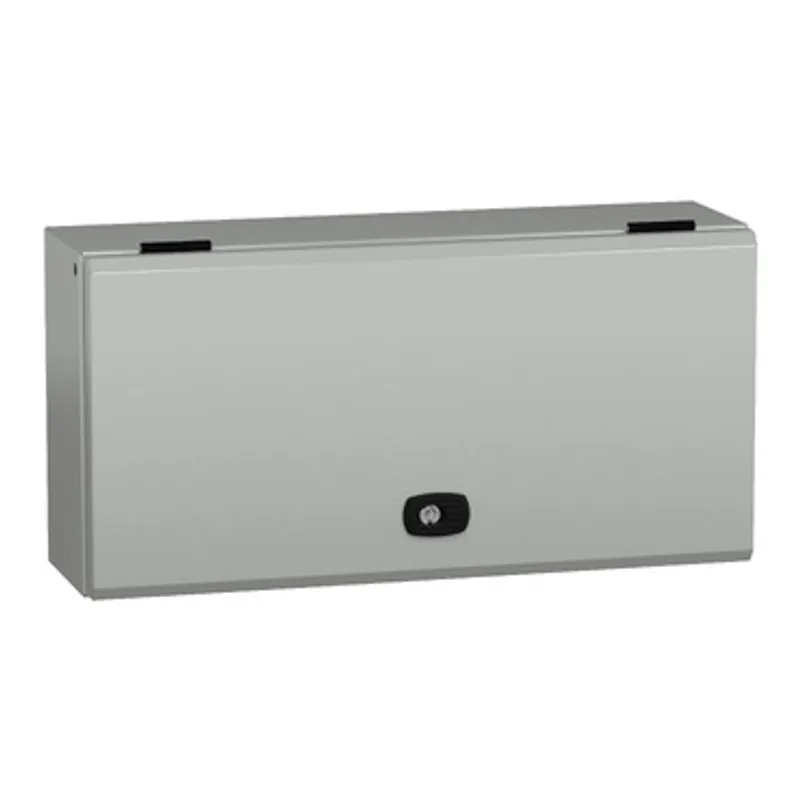

PanelSeT S3DB . H250xW500xD150. IP66, IK10, RAL7035. No
- MPN
- NSYS3DB25515
- EAN
- 3606480158803
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DB25515?
Spacial S3DB compact enclosure. H is250xW is500xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DB |
| Application | Terminal application |
| Category | Compact enclosure |

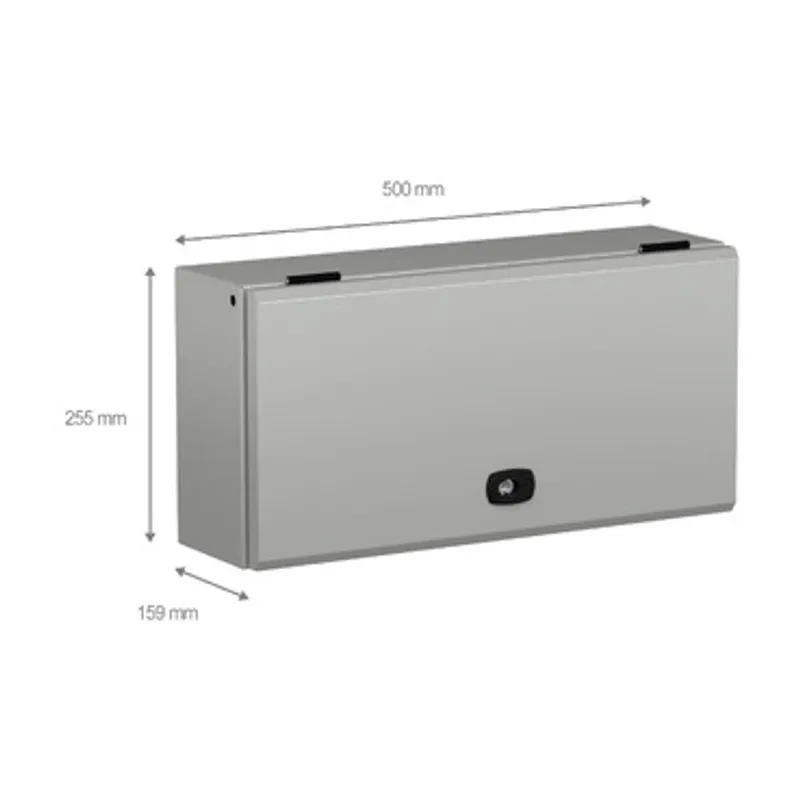

| Enclosure nominal height | 250 mm |
| Enclosure nominal width | 500 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting, Horizontal or vertical position |
| Product destination | For equipping with terminal |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | cUL, BV, GL, DNV, UL |
| Net weight | 5.218 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 51.000 cm × 26.500 cm × 19.500 cm (L × W × H), 5.218 kg |
| Package 2 | 70 PAM, 120.000 cm × 100.000 cm × 205.000 cm (L × W × H), 378.000 kg |
