Schneider Electric NSYS3DB25315
PanelSeT S3DB . H250xW300xD150. IP66, IK10, RAL7035. No
- MPN
- NSYS3DB25315
- EAN
- 3606480158827
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

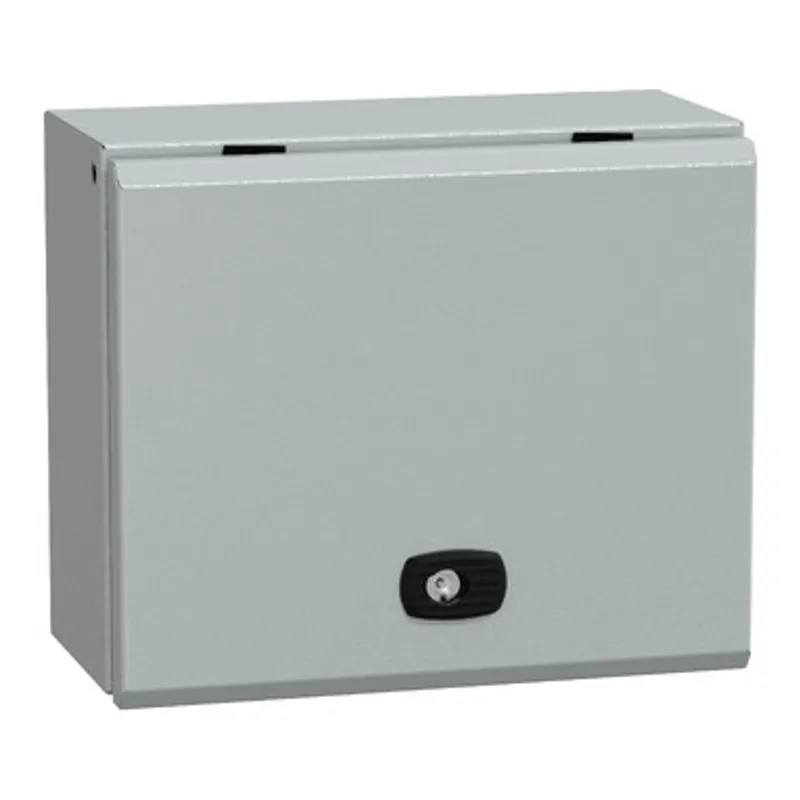

What is the Schneider Electric NSYS3DB25315?
Spacial S3DB steel wall-mounting enclosure for a terminal application It is certified by GL, BV, UL, LR, cUL and DNV, ensuring its quality and reliability The enclosure has a nominal height, width and depth of 250mm, 300mm and 150mm respectively It is made of steel in grey color (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door and a lock The door can be opened from the front up to 180°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DB |
| Application | Terminal application |
| Category | Compact enclosure |

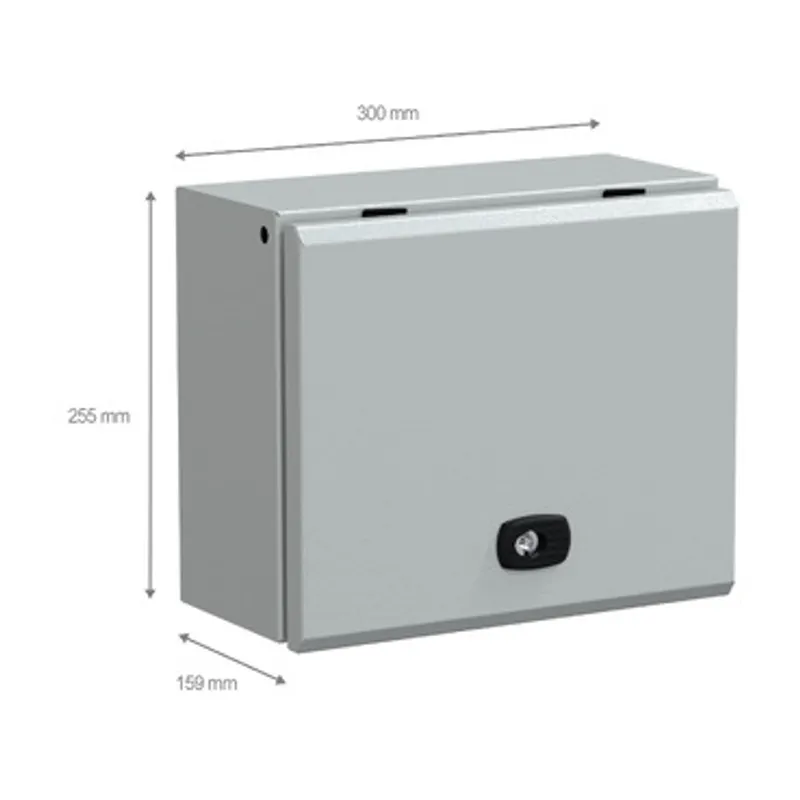

| Enclosure nominal height | 250 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting, Horizontal or vertical position |
| Product destination | For equipping with terminal |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | GL, BV, UL, cUL, DNV |
| Net weight | 3.374 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 31.500 cm × 26.500 cm × 19.500 cm (L × W × H), 3.374 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 120.000 cm (L × W × H), 184.000 kg |
