Schneider Electric NSYS3DB25415

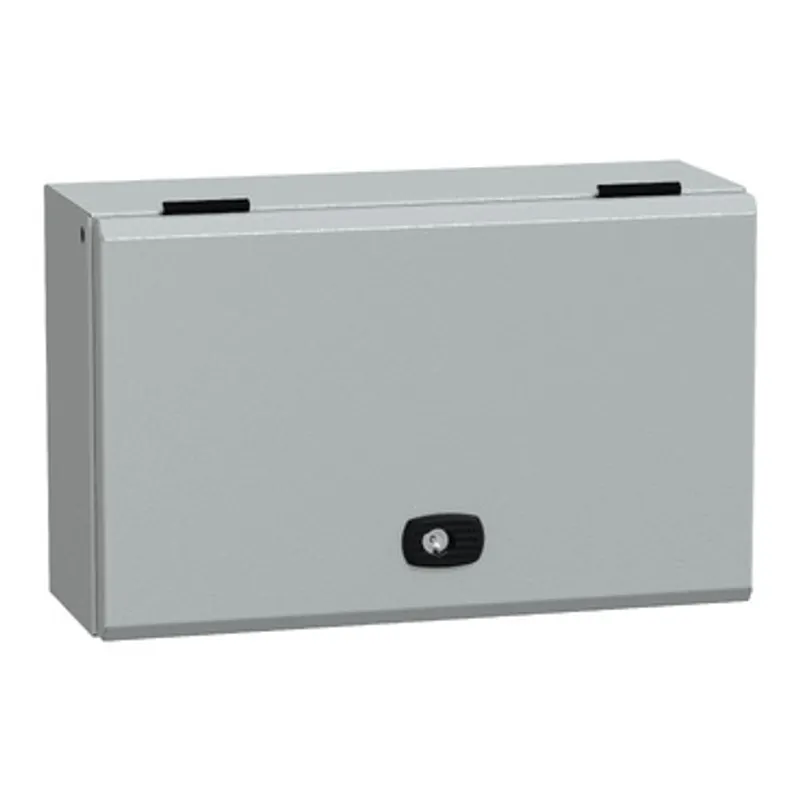

PanelSeT S3DB . H250xW400xD150. IP66, IK10, RAL7035. No
- MPN
- NSYS3DB25415
- EAN
- 3606480158810
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DB25415?
Spacial S3DB is a steel wall-mounting enclosure for a terminal application It is certified by cUL, LR, GL, UL, BV and DNV, making it suitable for use in harsh environments It has a nominal height, width and depth of 250mm, 400mm and 150mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door and a lock The door can be opened from the front up to 180°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DB |
| Application | Terminal application |
| Category | Compact enclosure |

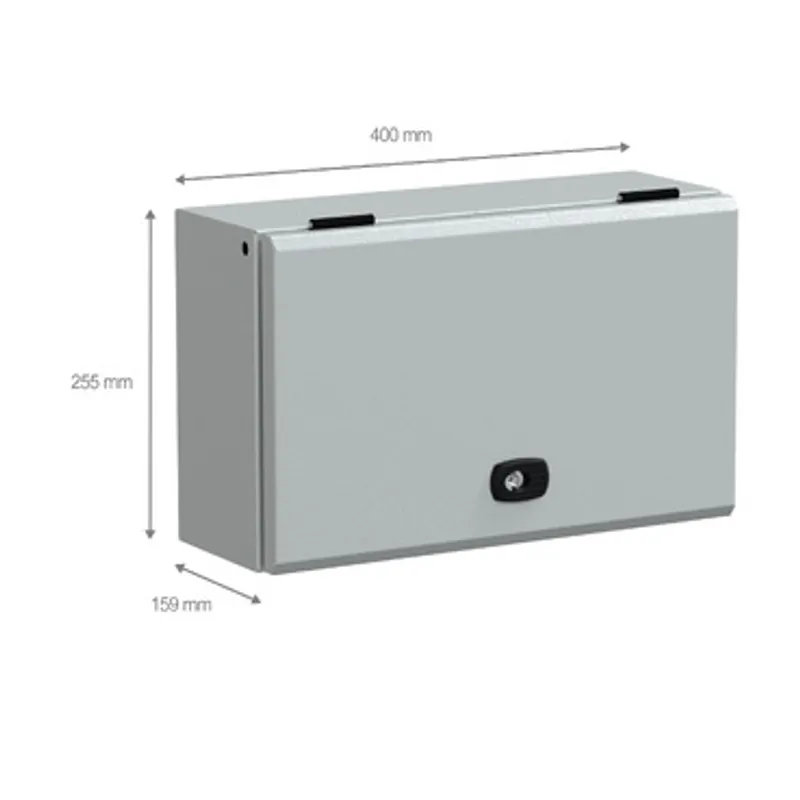

| Enclosure nominal height | 250 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Horizontal or vertical position, Wall-mounting |
| Product destination | For equipping with terminal |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | cUL, GL, UL, BV, DNV |
| Net weight | 4.13 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 41.500 cm × 19.500 cm × 16.500 cm (L × W × H), 4.180 kg |
| Package 2 | 84 PAM, 120.000 cm × 100.000 cm × 210.000 cm (L × W × H), 369.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3DB25415: frequently asked questions
When can NSYS3DB25415 be shipped?
NSYS3DB25415 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DB25415 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DB25415 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DB25415, subject to availability and destination.
