Schneider Electric NSYS3D5320
Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 500x300x200mm, IP66, IK10
- MPN
- NSYS3D5320
- EAN
- 3606480159480
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D5320?

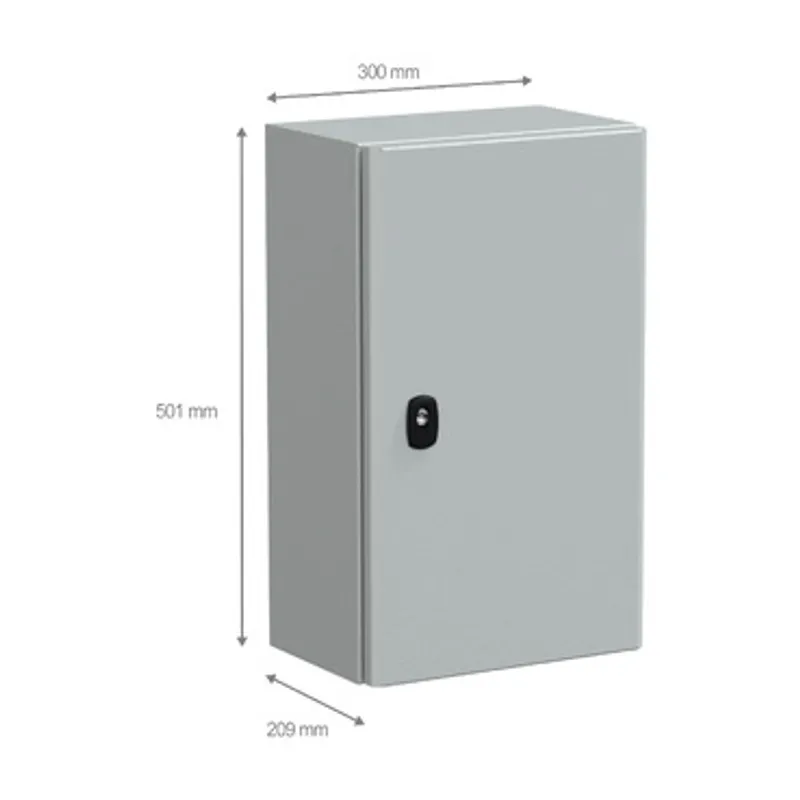

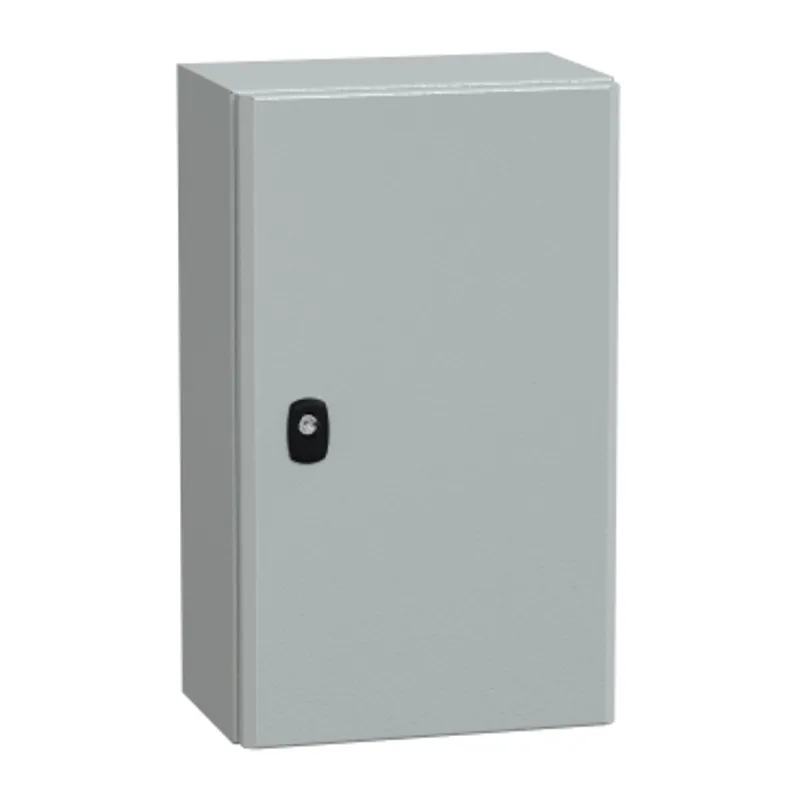

Spacial S3D is a multi-purpose monobloc wall-mounting enclosure designed to protect electrical and electronic equipment in harsh environments It has an enclosure nominal height, width and depth of 500mm, 300mm and 200mm, respectively The enclosure is made of steel and is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a NEMA 4X/13 rating and an IP66 rating (IEC60529) for dust and water resistance Furthermore, it has an IK10 (IEC62262) rating for high impact resistance The enclosure consists of a body, one plain door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside The door also has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 7,5kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 500 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, GL, BV, DNV, UL |
| Net weight | 7.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 51.000 cm × 31.500 cm × 24.500 cm (L × W × H), 6.714 kg |
| Package 2 | 42 PAM, 120.000 cm × 100.000 cm × 169.000 cm (L × W × H), 294.000 kg |
