Schneider Electric NSYS3D4625P

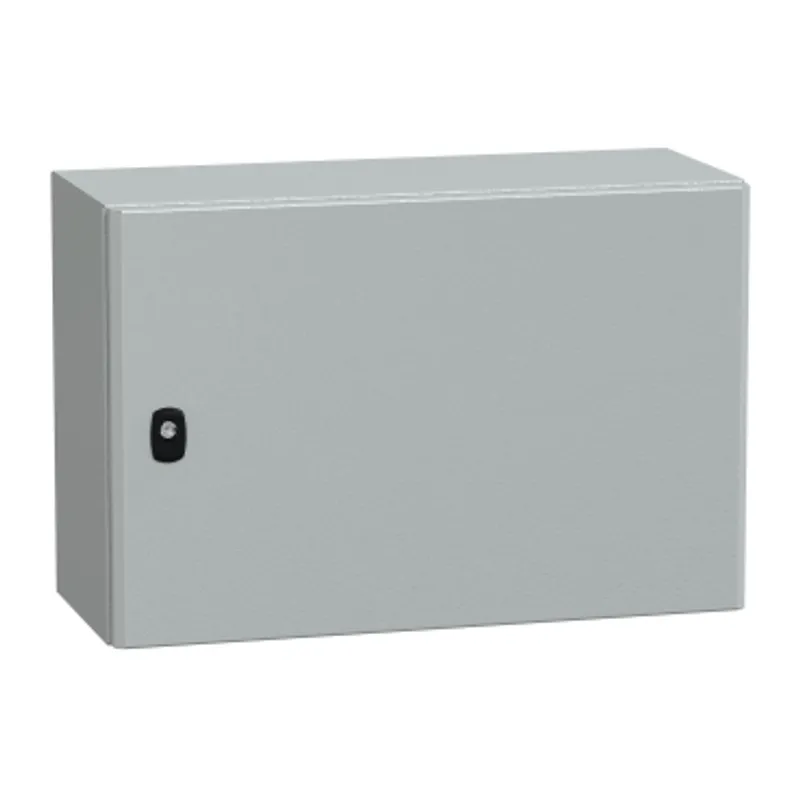

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400x600x250mm, IP66, IK10
- MPN
- NSYS3D4625P
- EAN
- 3606480159503
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D4625P?
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It is certified by GL, BV, LR, UL, DNV and cUL standards It has a nominal height, width and depth of 400mm, 600mm and 250mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one cable gland plate, one plain door with a lock and a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible)
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | GL, BV, UL, DNV, cUL |
| Net weight | 14.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 61.500 cm × 42.000 cm × 30.000 cm (L × W × H), 14.200 kg |
| Package 2 | 27 PAM, 120.000 cm × 100.000 cm × 199.000 cm (L × W × H), 397.300 kg |
