Schneider Electric NSYS3D5420P
Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 500x400x200mm, IP66, IK10
- MPN
- NSYS3D5420P
- EAN
- 3606480159442
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D5420P?

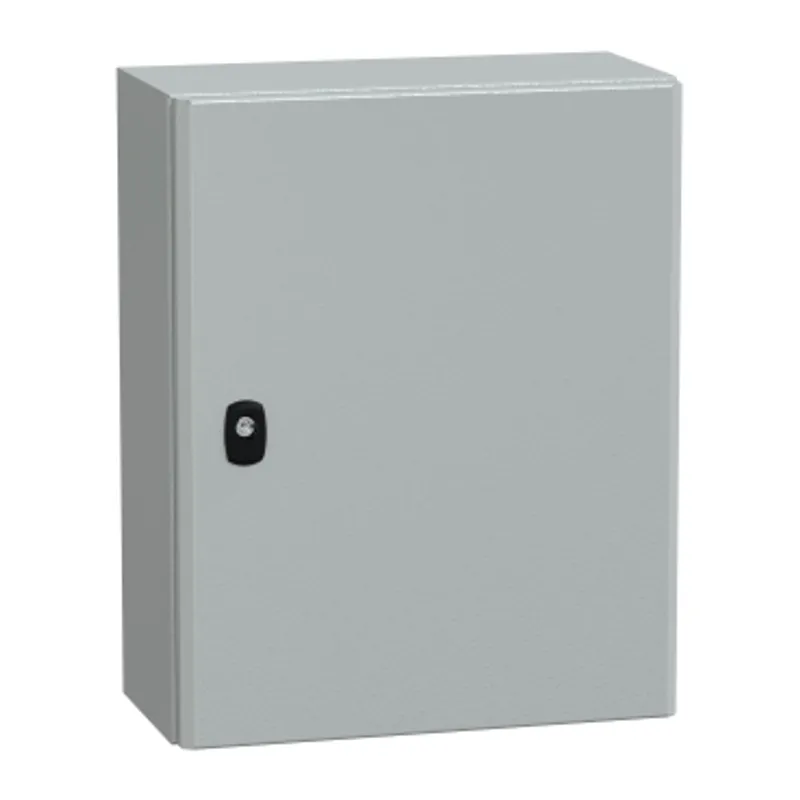

Spacial S3D is a wall-mounting enclosure made from steel and galvanised steel with a nominal height, width and depth of 500mm, 400mm and 200mm, respectively It has been certified by UL, cUL, GL, LR, DNV and BV and is designed to withstand harsh environments The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a 3mm double-bar lock, and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible)
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

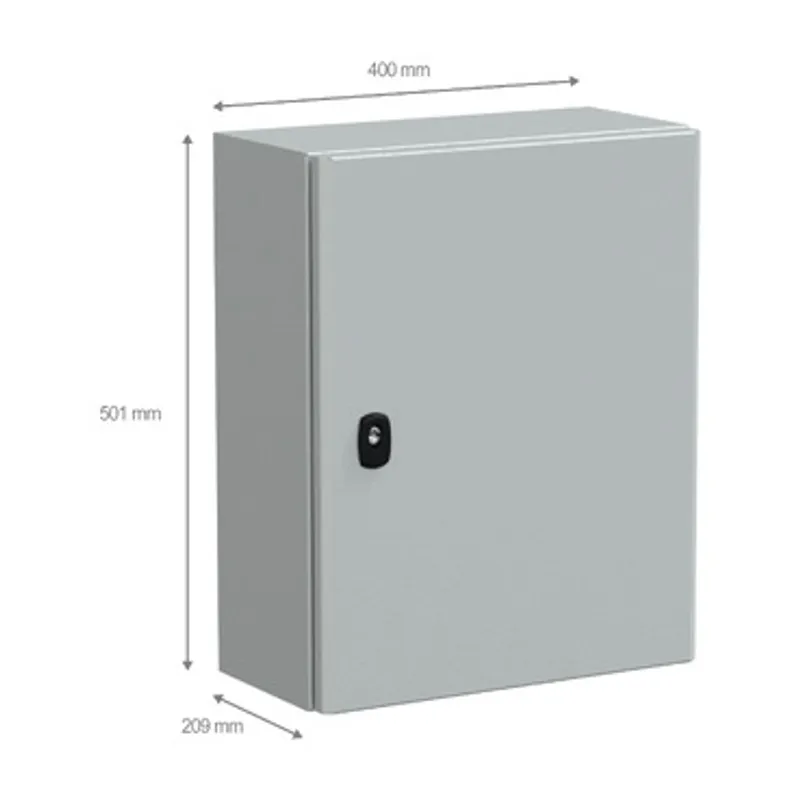

| Enclosure nominal height | 500 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, GL, DNV, BV |
| Net weight | 10.56 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 51.500 cm × 42.000 cm × 24.500 cm (L × W × H), 10.560 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 170.000 cm (L × W × H), 334.000 kg |
