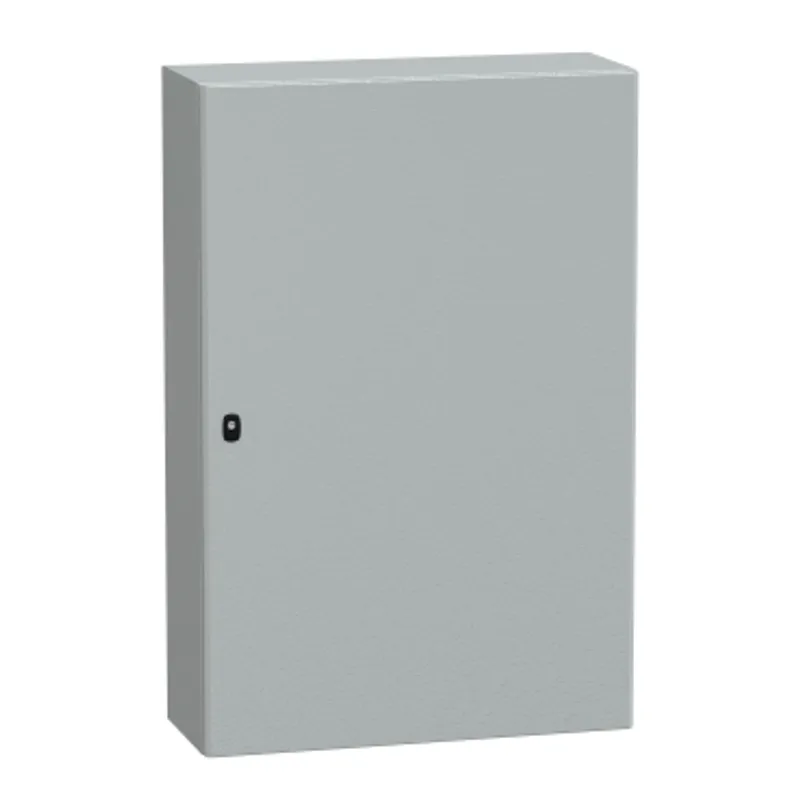

Schneider Electric NSYS3D12830P

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1200x800x300mm, IP66, IK10

MPN
NSYS3D12830P
EAN
3606480159879
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D12830P?

Spacial S3D steel wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments It has a nominal height, width and depth of 1200mm, 800mm and 300mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish It also has a galvanised steel mounting plate The enclosure consists of a body, two cable gland plates, a mounting plate and one door with a lock The door can be opened up to 120°, allowing easy access to the equipment inside

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width800 mm
Enclosure nominal depth300 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 1 mounting plate, 1 door with lock
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, DNV, GL, UL, BV
Net weight61 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 122.500 cm × 82.500 cm × 35.500 cm (L × W × H), 59.800 kg
Package 22 PAL, 122.500 cm × 80.000 cm × 97.000 cm (L × W × H), 131.400 kg
