Schneider Electric NSYS3D12640P

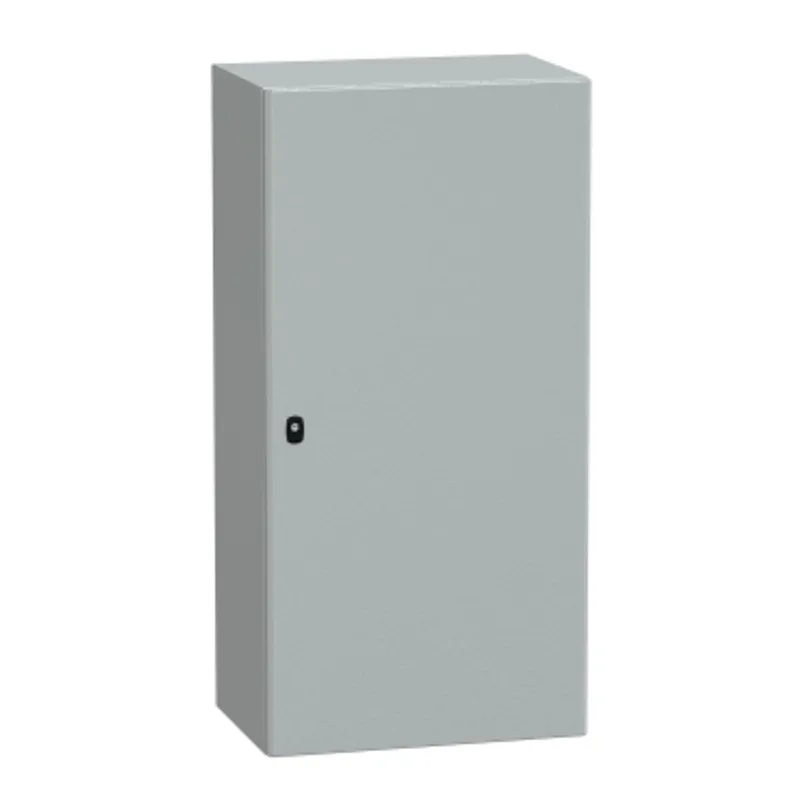

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1200x600x400mm, IP66, IK10

MPN
NSYS3D12640P
EAN
3606480159909
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D12640P?

"PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments" "It can withstand high impact due to its IK10 (IEC62262) and NEMA 4X/13 ratings and has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 1200mm, 600mm and 400mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "The enclosure consists of a body, a mounting plate, one plain door with a lock, and one cable gland plate" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the doors (reversible)" "The doors have a three-point lock with a 3mm double-bar insert" "The doors, the cable gland plates and the mounting plate can be removed for maintenance purposes" "The net weight of the enclosure is 52kg" "It is certified by BV, cUL, LR, GL, DNV and UL" "It has a single piece body and a gutter-shaped front rail double sheet thickness for added strength" "The enclosure is accessible for operation from the front"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure

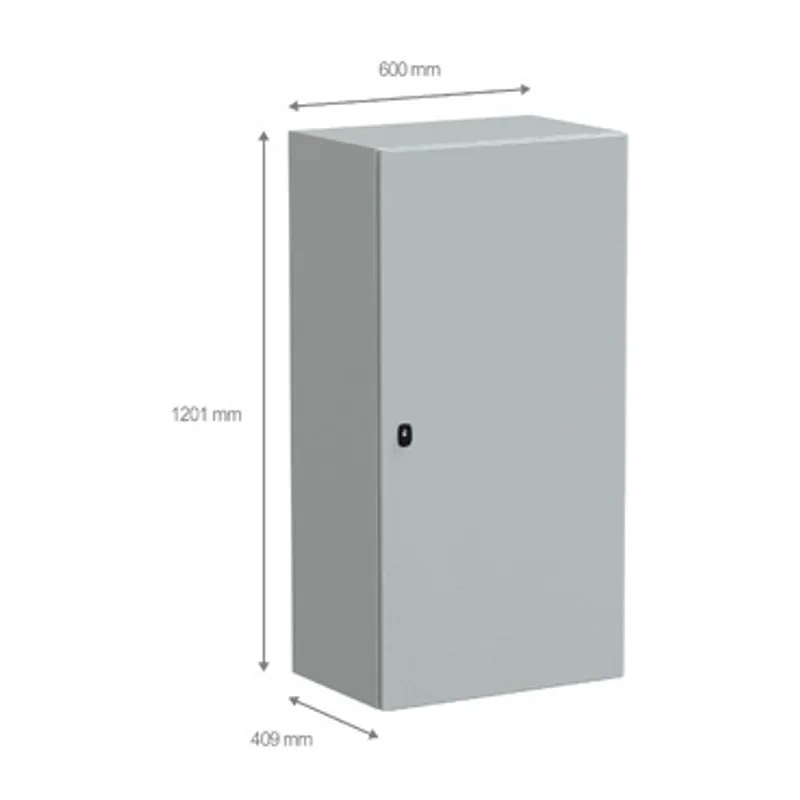

Enclosure nominal height1200 mm
Enclosure nominal width600 mm
Enclosure nominal depth400 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsBV, cUL, GL, DNV, UL
Net weight52 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 123.000 cm × 61.000 cm × 45.000 cm (L × W × H), 51.000 kg
Package 26 PAL, 123.000 cm × 100.000 cm × 199.000 cm (L × W × H), 328.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D12640P: frequently asked questions

When can NSYS3D12640P be shipped?

NSYS3D12640P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D12640P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D12640P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D12640P, subject to availability and destination.
