Schneider Electric NSYS3D12640T

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1200x600x400mm, IP66, IK08

MPN
NSYS3D12640T
EAN
3606480159893
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D12640T?

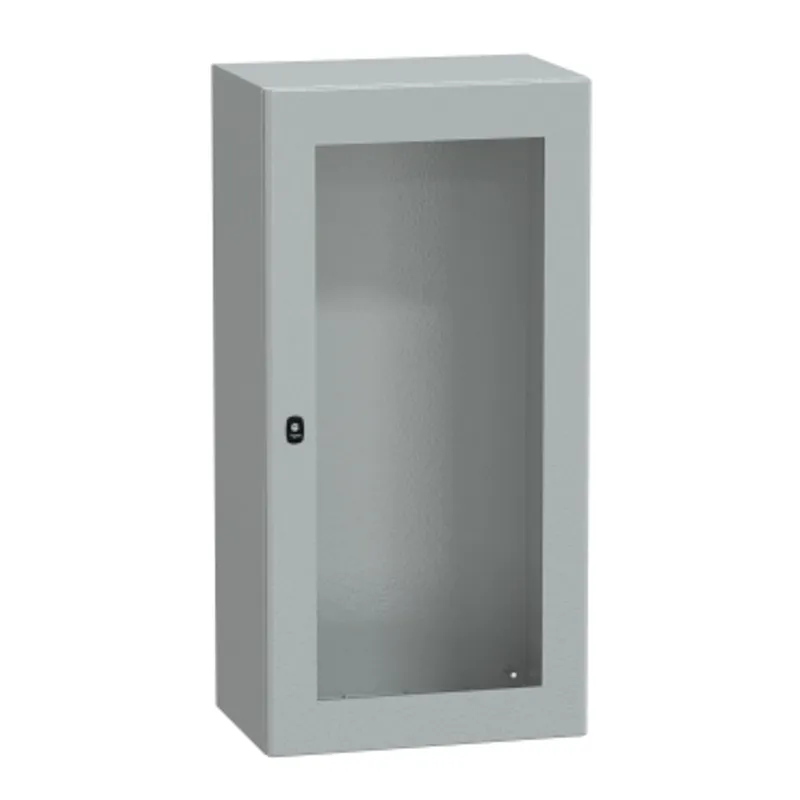

PanelSeT S3D wall mounted steel enclosure with glazed door. 1200 x 600 x 400 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure

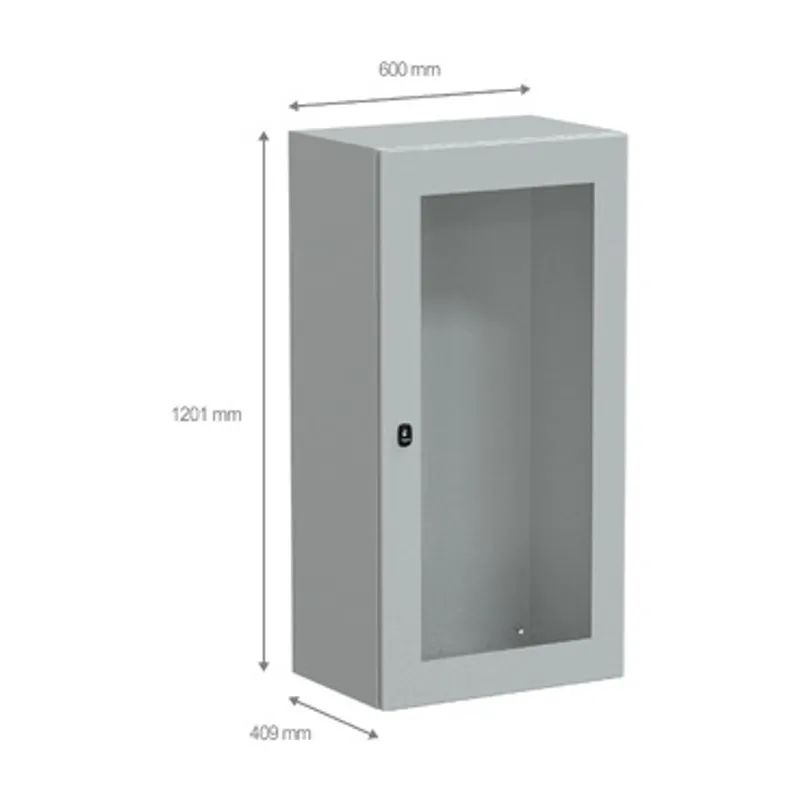

Enclosure nominal height1200 mm
Enclosure nominal width600 mm
Enclosure nominal depth400 mm
Door typeGlazed
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 1 cable gland plate
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV, BV, GL
Net weight37 kg
Electromagnetic compatibilityElectromagnetic field immunity test
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529

Packaging

Package 11 PCE, 122.500 cm × 62.000 cm × 45.500 cm (L × W × H), 38.400 kg
Package 26 PAL, 122.500 cm × 100.000 cm × 199.000 cm (L × W × H), 244.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D12640T: frequently asked questions

When can NSYS3D12640T be shipped?

NSYS3D12640T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D12640T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D12640T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D12640T, subject to availability and destination.
