Wall mounted steel enclosure, PanelSeT S3D, double transparent door, without mounting plate, 1200x1000x300mm, IP55, IK08
Teklif İsteyin
Hızlı bilgiler
| Uygunluk | Talep üzerine onaylanır |
| Kategori | PanelSeT S3D |
| Yaşam döngüsü | active |
| Garanti | 12 ay (yeni) · 3 ay (kullanılmış/yenilenmiş) |
| Ağırlık | 52 kg |
Gönderim ve uygunluk
NSYS3D121030DT ne zaman gönderilebilir?
NSYS3D121030DT talep üzerine temin ediliyor — bir teklif isteyin, bu spesifik ürün için tam uygunluk ve gönderim süresini onaylayalım.
NSYS3D121030DT ürününü şahsen teslim alabilir miyim?
Groningen, Hollanda'daki depomuzdan şahsen teslim alma mümkün olabilir — sipariş vermeden önce uygunluğu kontrol etmek ve bir teslim alma zamanı ayarlamak için bizimle iletişime geçin.
Ekspres teslimat mevcut mu?
Evet — NSYS3D121030DT için teklif isterken bunu belirtin, yanıtımızda ekspres gönderim seçeneklerini de sunalım.
Fabrikamız durdu ve buna acilen ihtiyacımız var — yardımcı olabilir misiniz?
Kritik bir arıza durumunda doğrudan +31 (0)50-7110348 numarasından veya sales@partnerplc.com adresinden bizimle iletişime geçin — uygunluk ve varış yerine bağlı olarak NSYS3D121030DT için aynı gün kurye veya özel taşıma seçeneklerini değerlendirebiliriz.
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, BV, DNV, UL, GL and LR, and has a nominal height, width and depth of 1200mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two glazed doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 52kg
Teknik özellikler
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 lock, 2 door |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, BV, DNV, UL, GL |
| Net weight | 52 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.400 cm |
| Package 1 Width | 102.400 cm |
| Package 1 Length | 122.600 cm |
| Package 1 Weight | 52.000 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 120.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 113.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
Daha fazla Schneider Electric parçası

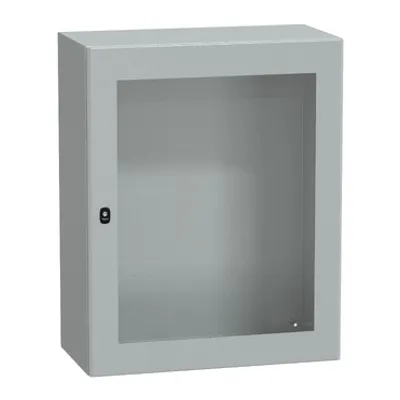

Talep üzerine temin edilirWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x800x400mm, IP66, IK08

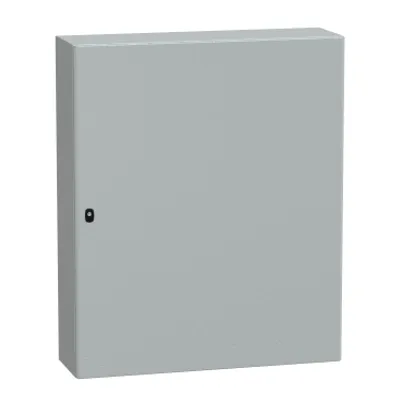

Talep üzerine temin edilirWall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1200x1000x300mm, IP66, IK10

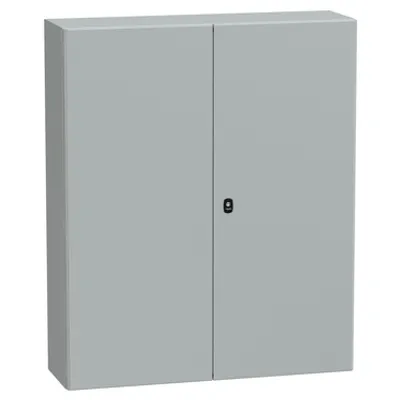

Talep üzerine temin edilirWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1200x1000x300mm, IP55, IK10
