Schneider Electric NSYS3D10640P

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x600x400mm, IP66, IK10

MPN
NSYS3D10640P
EAN
3606480160172
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D10640P?

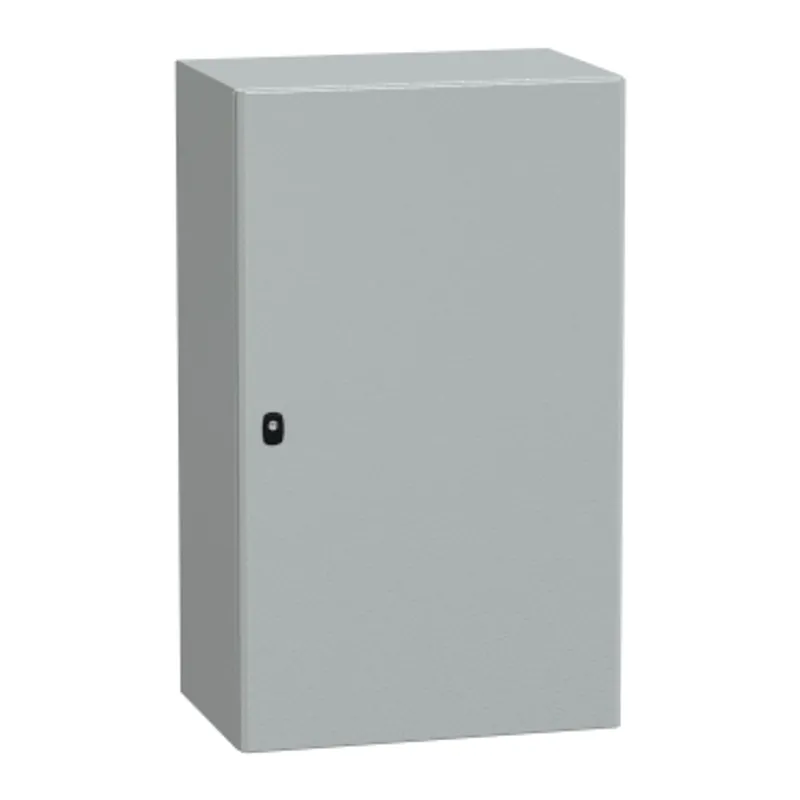

Spacial S3D is a multi-purpose, wall-mounting enclosure designed for use in harsh environments It is certified by LR, UL, GL, DNV, BV and cUL and has a NEMA 4X/13 rating as well as an IK10 rating (IEC62262) and an IP66 rating (IEC60529) The enclosure has a nominal height, width and depth of 1000mm, 600mm and 400mm, respectively It is made of steel with an epoxy-polyester powder surface finish, and is grey-coloured (RAL 7035) The enclosure consists of a body, one door with a lock, one cable gland plate and one mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure

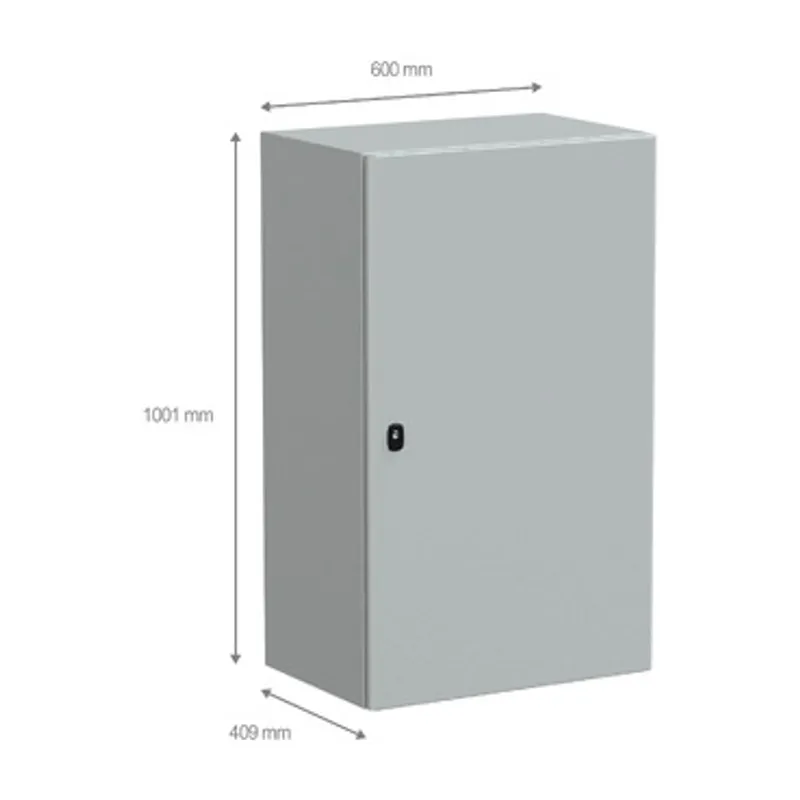

Enclosure nominal height1000 mm
Enclosure nominal width600 mm
Enclosure nominal depth400 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208
Product certificationsUL, GL, DNV, BV, cUL
Net weight45 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 102.000 cm × 62.000 cm × 45.000 cm (L × W × H), 44.000 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 201.000 cm (L × W × H), 278.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D10640P: frequently asked questions

When can NSYS3D10640P be shipped?

NSYS3D10640P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D10640P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D10640P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D10640P, subject to availability and destination.
