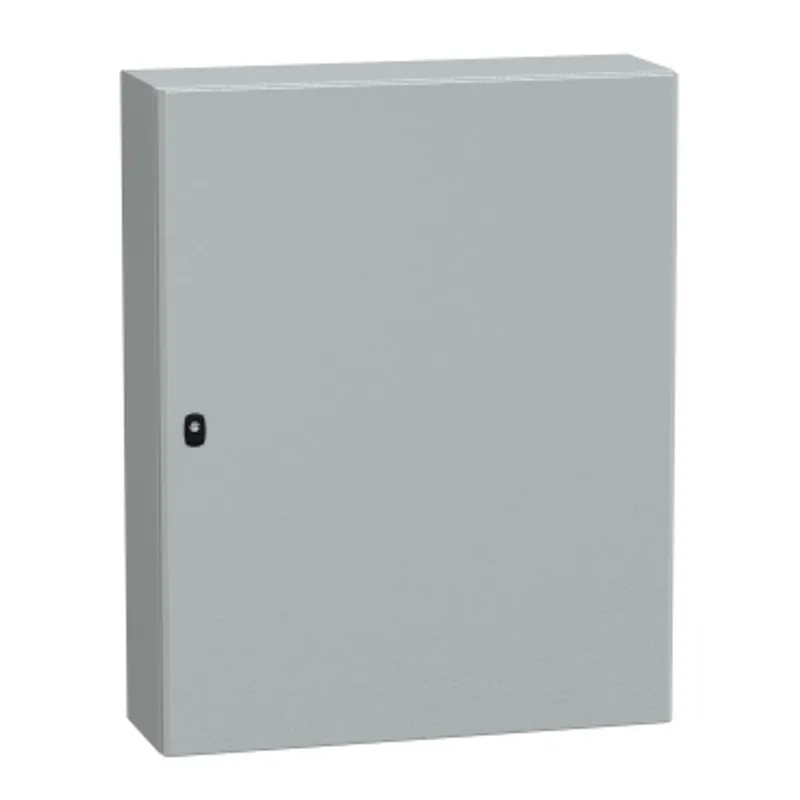

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x800x250mm, IP66, IK10
"PanelSeT S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments" "It is certified by LR, UL, GL, cUL, DNV and BV" "It has a nominal height, width and depth of 1000mm, 800mm and 250mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "The enclosure consists of a body, two cable gland plates, a mounting plate, one plain door and a lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the door (reversible)" "The door has a three-point lock with a 3mm double-bar insert" "The door and the cable gland plates can be removed for maintenance purposes" "The mounting plate is plain and can be fixed with a fixing element" "The net weight of the enclosure is 49kg" "It has NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) protection ratings" "The enclosure features a single piece body and a gutter-shaped front rail double sheet thickness" "Accessibility for operation is from the front"
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 mounting plate, 1 door with lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, GL, cUL, DNV, BV |
| Net weight | 49 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Package 1 | 1 PCE, 101.500 cm × 82.000 cm × 30.000 cm (L × W × H), 44.400 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 278.500 kg |
