Schneider Electric NSYS3D10630T

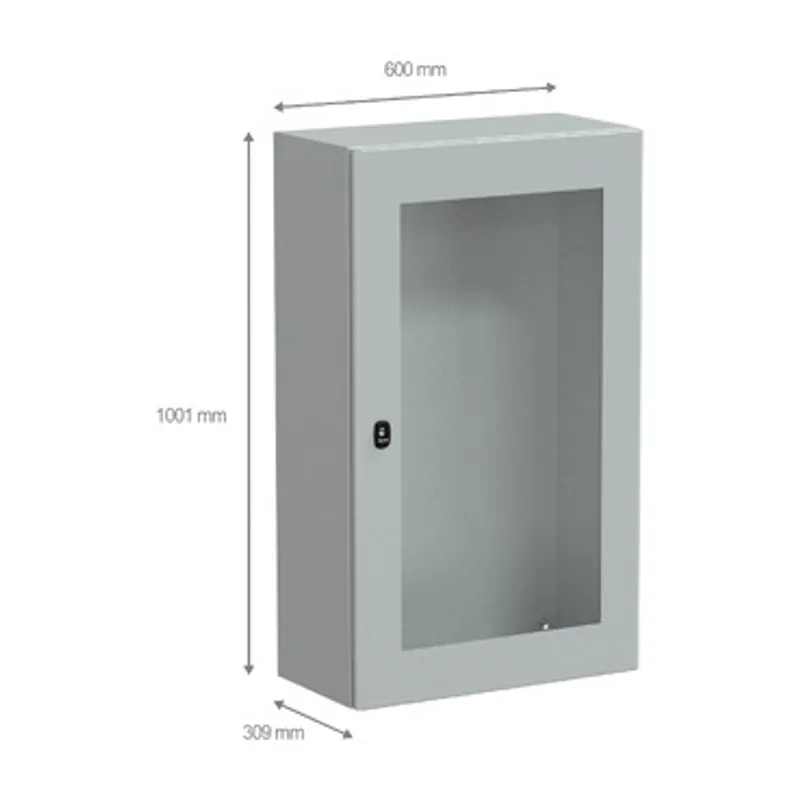

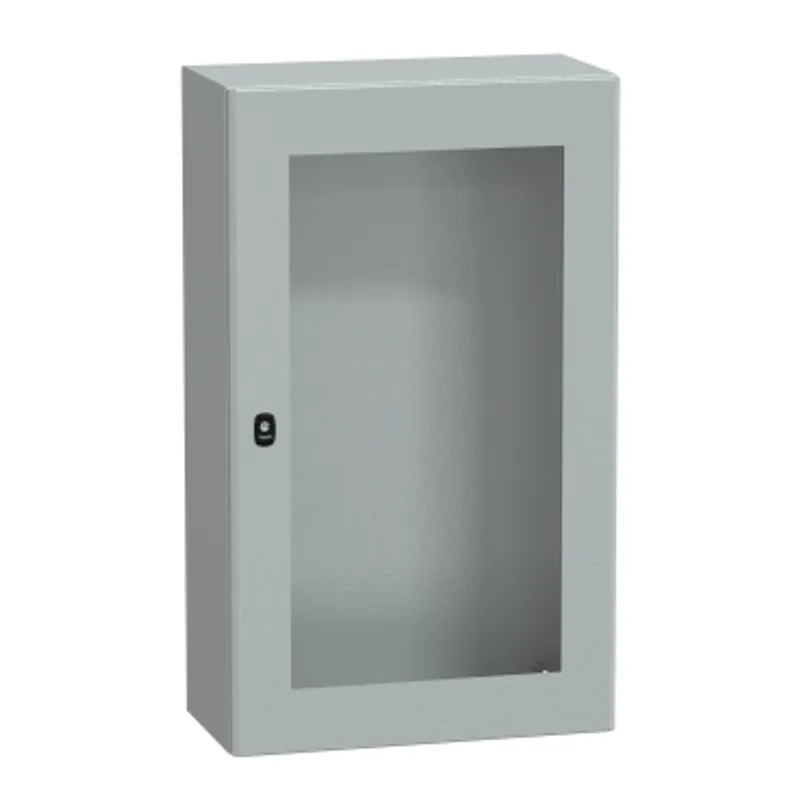

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x600x300mm, IP66, IK08

MPN
NSYS3D10630T
EAN
3606480160196
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D10630T?

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh environments It has a NEMA 4X/13 rating and an IP66 rating (IEC60529) for high resistance to dust and water This enclosure has a nominal height, width and depth of 1000mm, 600mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a glazed door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1000 mm
Enclosure nominal width600 mm
Enclosure nominal depth300 mm
Door typeGlazed
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 1 cable gland plate
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsDNV, GL, cUL, BV, UL
Net weight29 kg
Electromagnetic compatibilityElectromagnetic field immunity test
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 102.500 cm × 62.500 cm × 35.500 cm (L × W × H), 25.800 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 165.000 cm (L × W × H), 166.200 kg
