Schneider Electric NSYPTDS4
KIT FLUSH-MOUNTING POUR ATV T4
- MPN
- NSYPTDS4
- EAN
- 3606485442471
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPTDS4?

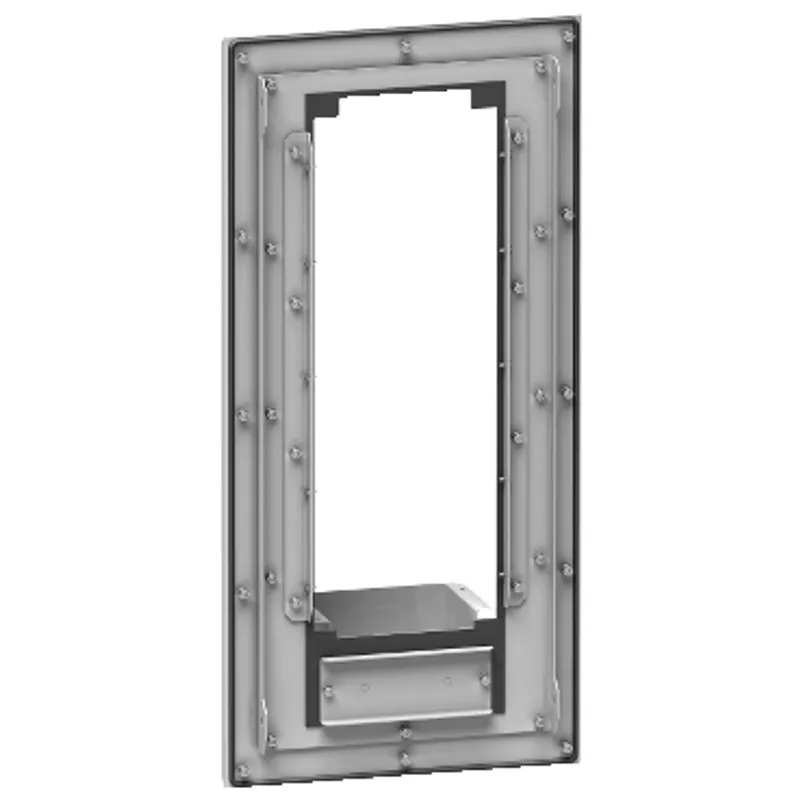

Flush mounting kit for variable speed drives in PanelSeT SFN, and PanelSeT SM and S3D electrical enclosures. It has nominal height and width of 800 and 385 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Drive flush mounting kit |
| accessory category | Mounting and fixing accessory |
| Product specific application | Process and utilities |
| Range compatibility | Altivar variable speed drive ATV630, Altivar variable speed drive ATV930, PanelSeT SF and SM enclosures, Altivar variable speed drive ATV340 |
| compatibility for Altivar Process 630-930, size: | 4 |
| Motor power kW | 15 kW 220/240 V, 18.5 kW 220/240 V, 22 kW 220/240 V, 30 kW 380/480 V, 37 kW 380/480 V, 45 kW 380/480 V |
| Mounting location | Mode 1: back of enclosure on mounting plate, Mode 2: inside enclosure |
| Kit composition | 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet, 1 x edge protector profile, plastic., 1 x fan support, 1 x cover for fan protection |
| Permanent permissible load | 28.7 kg |
| Colour | Grey (RAL 7035) |
| Height | External: 800 mm, Cut-out: 735 mm |
| Width | External: 385 mm, Cut-out: 325 mm |
| Depth | Wall-enclosure separation : 151.5 mm |
| Net weight | 8.102 kg |
| Services | Configuration of enclosurepre-drilled back at requested dimensions, Factory installation drive flush mounting kit on enclosure |
| IP degree of protection | IP55 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 41.000 cm × 84.000 cm (L × W × H), 8.102 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 146.000 cm (L × W × H), 175.000 kg |
