Schneider Electric NSYPTDS1
KIT FLUSH-MOUNTING POUR ATV T1
- MPN
- NSYPTDS1
- EAN
- 3606485433202
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPTDS1?

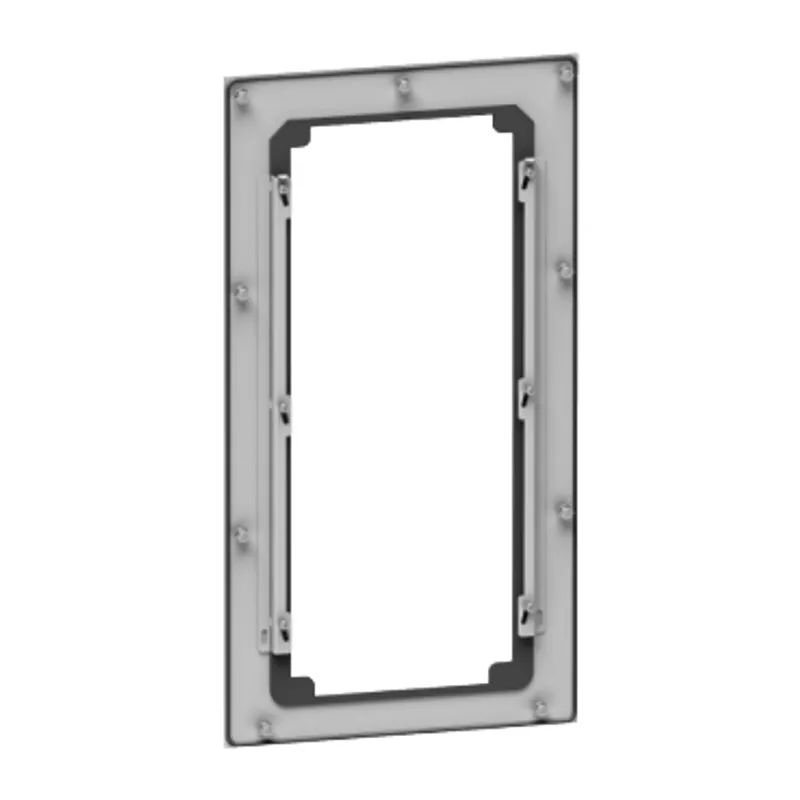

Flush mounting kit for variable speed drives in PanelSeT SFN, and PanelSeT SM and S3D electrical enclosures. It has nominal height and width of 360 and 235 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Drive flush mounting kit |
| accessory category | Mounting and fixing accessory |
| Product specific application | Process and utilities |
| Range compatibility | PanelSeT SF and SM enclosures: H:>=400 mm x W:>=300 mm, PanelSeT S3D enclosure: H:>=400 mm x W:>=300 mm, Altivar variable speed drive ATV630, Altivar variable speed drive ATV930 |
| compatibility for Altivar Process 630-930, size: | 1 |
| Motor power kW | 0.75 kW 220/240 V, 1.5 kW 220/240 V, 2.2 kW 220/240 V, 3 kW 220/240 V, 4 kW 220/240 V, 0.75 kW 380/480 V, 1.5 kW 380/480 V, 2.2 kW 380/480 V, 3 kW 380/480 V, 4 kW 380/480 V, 5.5 kW 380/480 V |
| Mounting location | Mode 1: back of enclosure on mounting plate, Mode 2: inside enclosure |
| Kit composition | 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet, 1 x edge protector profile, plastic. |
| Permanent permissible load | 4.8 kg |
| Colour | Grey (RAL 7035) |
| Height | External: 360 mm, Cut-out: 307 mm |
| Width | External: 235 mm, Cut-out: 190 mm |
| Depth | Wall-enclosure separation : 22 mm |
| Net weight | 1.58 kg |
| Services | Configuration of enclosurepre-drilled back at requested dimensions, Factory installation drive flush mounting kit on enclosure |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 38.000 cm × 25.000 cm × 5.000 cm (L × W × H), 1.580 kg |
| Package 2 | 10 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 15.800 kg |
