What is the Schneider Electric NSYPTDS3?

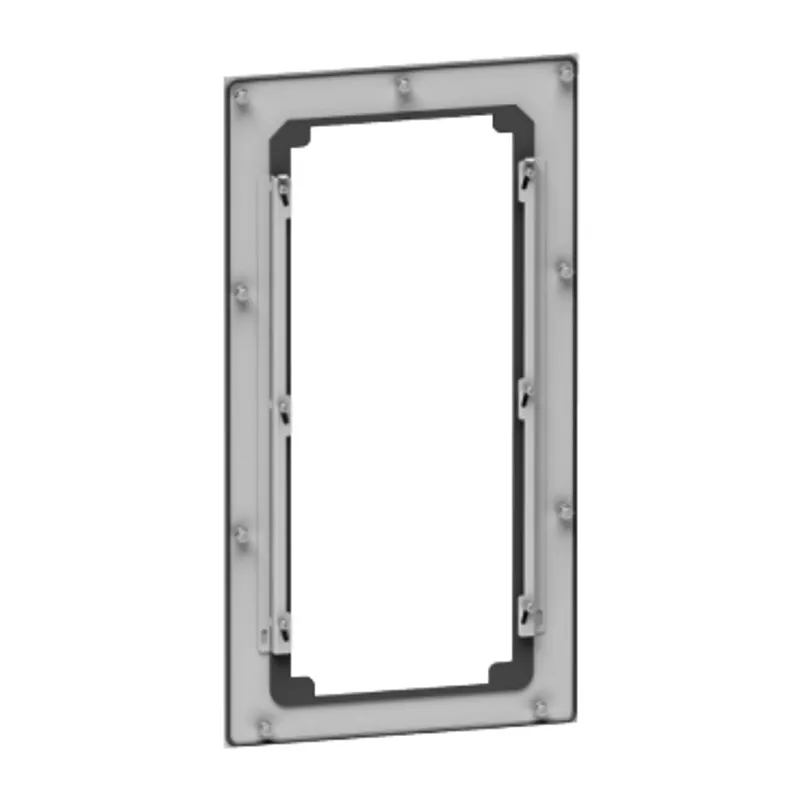

Flush mounting kit for variable speed drives in PanelSeT SFN, and PanelSeT SM and S3D electrical enclosures. It has nominal height and width of 555 and 295 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Drive flush mounting kit |
| accessory category | Mounting and fixing accessory |
| Product specific application | Process and utilities |
| Range compatibility | Altivar variable speed drive ATV630, Altivar variable speed drive ATV930, PanelSeT SF and SM enclosures: H:>=600 mm x W:>=300 mm, PanelSeT S3D enclosure: H:>=600 mm x W:>=300 mm |
| compatibility for Altivar Process 630-930, size: | 3 |
| Motor power kW | 7.5 kW 220/240 V, 11 kW 220/240 V, 15 kW 380/480 V, 18.5 kW 380/480 V, 22 kW 380/480 V |
| Mounting location | Mode 1: back of enclosure on mounting plate, Mode 2: inside enclosure |
| Kit composition | 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet, 1 x edge protector profile, plastic. |
| Permanent permissible load | 14.3 kg |
| Colour | Grey (RAL 7035) |
| Height | External: 555 mm, Cut-out: 503 mm |
| Width | External: 295 mm, Cut-out: 250 mm |
| Depth | Wall-enclosure separation : 22 mm |
| Net weight | 2.452 kg |
| Services | Configuration of enclosurepre-drilled back at requested dimensions, Factory installation drive flush mounting kit on enclosure |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 57.000 cm × 37.000 cm × 5.000 cm (L × W × H), 2.452 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 87.000 kg |
