Schneider Electric NSYPLM32TG

Wall mounted ABS + PC enclosure, PanelSeT PLM, glazed door, 310x215x160mm, IP66, IK10, RAL 7035

MPN
NSYPLM32TG
EAN
3606480776502
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM32TG?

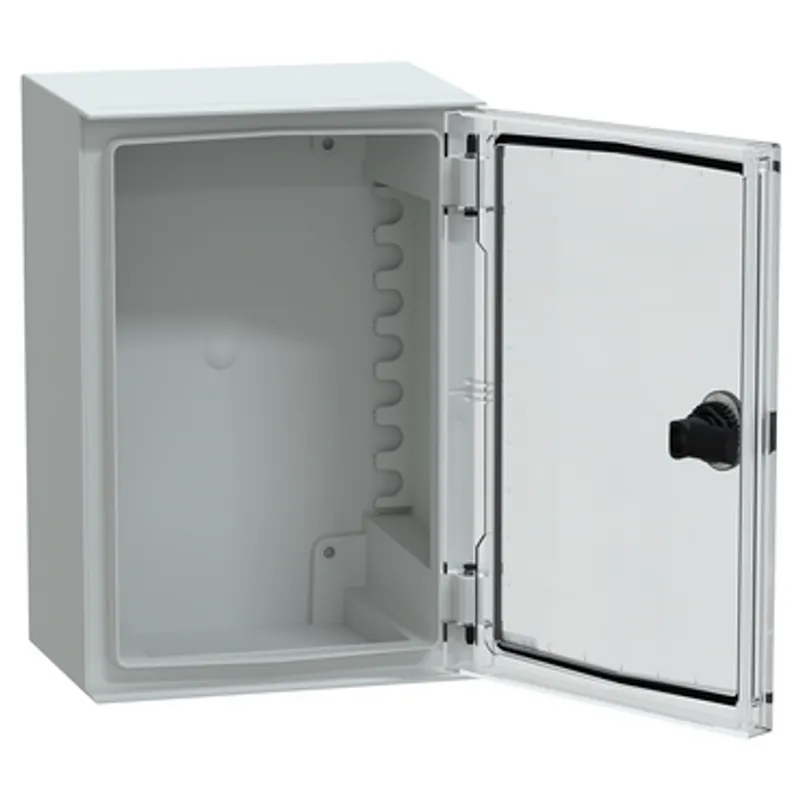

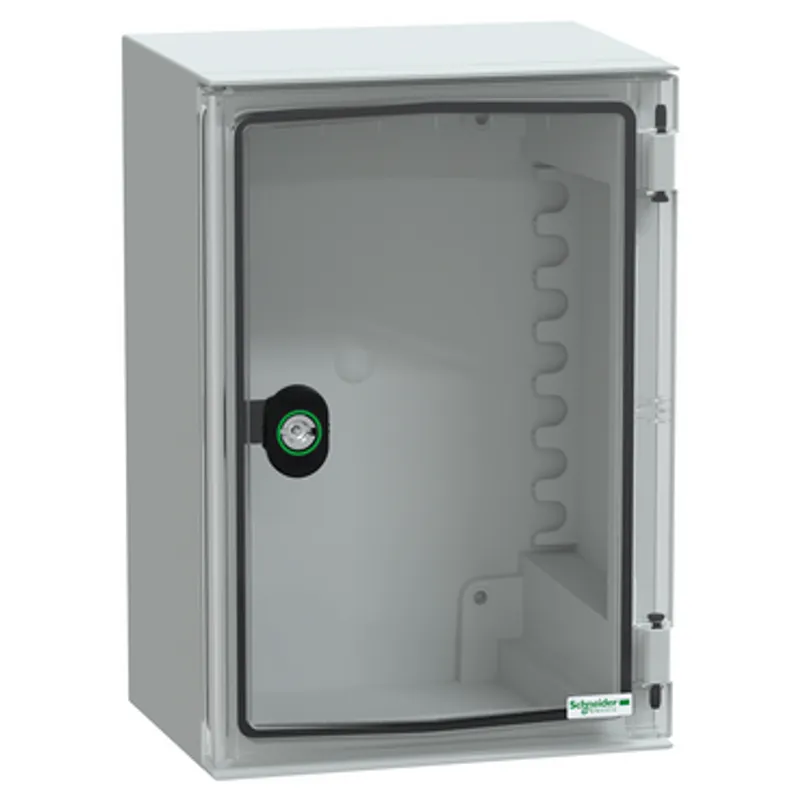

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications It is made of polycarbonate for the door and ABS + PC for the body, offering durability and resistance to industrial and outdoor environments The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively The door is transparent, allowing easy visibility of the equipment inside, and is held securely with a 3 mm double-bar lock The enclosure is UL certified and meets NEMA classification 13, NEMA classification 4X, and IEC 62208 standards It has an IP66 rating (IEC 60529) for dust and water protection, an IK10 rating (IEC 62262) for impacts, and a class II electrical insulation rating The enclosure can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure
Nominal height310 mm
Nominal width215 mm
Nominal depth160 mm
Enclosure mountingWall mounted
Device composition1 body, 1 door, 1 lock
Door typeTransparent
Lock type3 mm double-bar lock
Number of locks1
Mounting plate descriptionWithout mounting plate
Accessibility for operationFront
Removable partsDoor by hinges
MaterialDoor: polycarbonate, Body: ABS + PC
ColourGrey (RAL 7035)
StandardsNEMA classification 13, NEMA classification 4X, IEC 62208
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 32.000 cm × 23.000 cm × 17.000 cm (L × W × H), 1.480 kg
Package 270 P12, 120.000 cm × 80.000 cm × 130.000 cm (L × W × H), 109.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLM32TG: frequently asked questions

When can NSYPLM32TG be shipped?

NSYPLM32TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM32TG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM32TG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM32TG, subject to availability and destination.
