Schneider Electric NSYPLM32PG

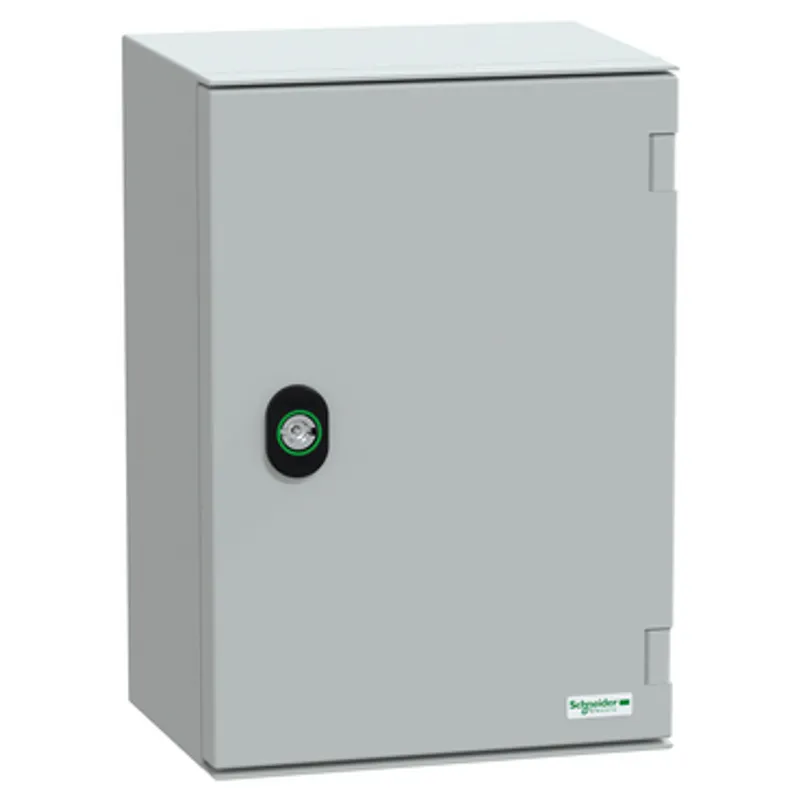

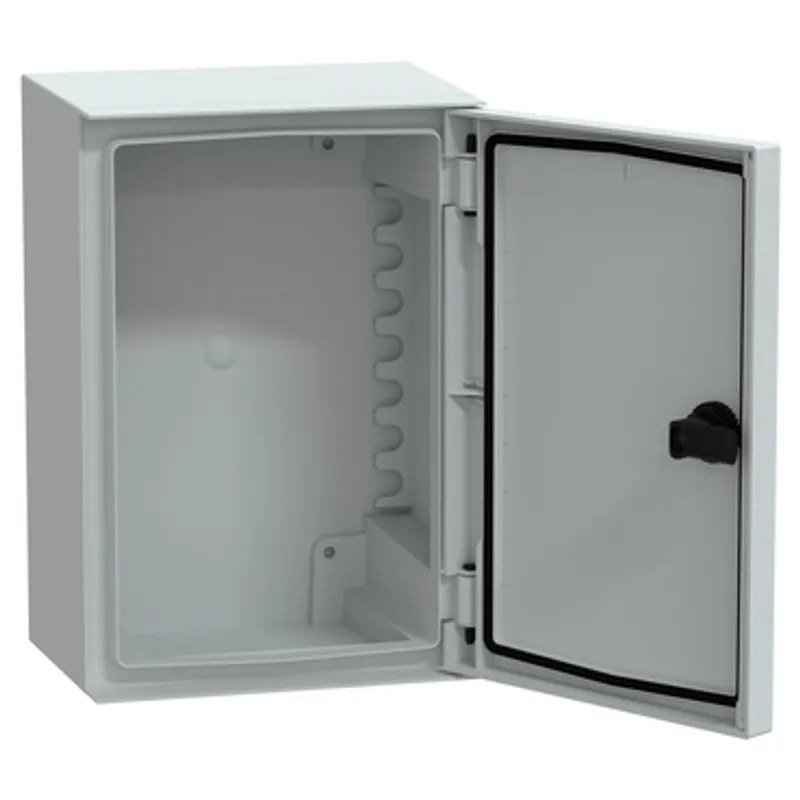

Wall mounted ABS + PC enclosure, PanelSeT PLM, plain door, with metallic plate, 310x215x160mm, IP66, IK10, RAL 7035

MPN
NSYPLM32PG
EAN
3606480776496
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM32PG?

This PLM is a wall-mounted enclosure from the PanelSeT range that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS + PC, which offers durability and resistance to industrial environments. The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, one lock, and one mounting plate The door is plain, allowing a discreet look The door can be opened from the front and has a 3 mm double-bar lock The mounting plate is plain steel The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance The door and mounting plate are removable by hinges and fixing elements, respectively The enclosure also offers fire resistance of up to 960°C (IEC 62208) and complies with NEMA classification 4X, IEC 62208, and NEMA classification 13 standards

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure
Nominal height310 mm
Nominal width215 mm
Nominal depth160 mm
Enclosure mountingWall mounted
Device composition1 body, 1 door, 1 lock, 1 mounting plate
Door typePlain
Lock type3 mm double-bar lock
Number of locks1
Mounting plate descriptionPlain steel
Accessibility for operationFront
Removable partsDoor by hinges, Mounting plate by fixing element
MaterialABS + PC
ColourGrey (RAL 7035)
StandardsNEMA classification 4X, IEC 62208, NEMA classification 13
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 32.000 cm × 23.500 cm × 17.000 cm (L × W × H), 1.958 kg
Package 270 P12, 120.000 cm × 80.000 cm × 133.000 cm (L × W × H), 145.000 kg
