Schneider Electric NSYPLM32BG

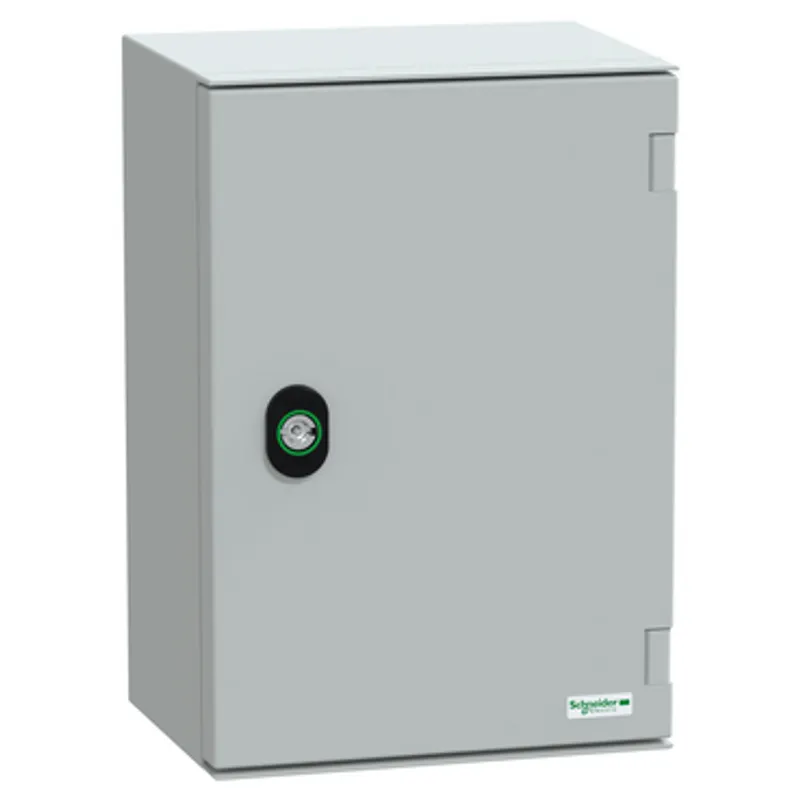

Wall mounted ABS + PC enclosure, PanelSeT PLM, plain door, with bakelite plate, 310x215x160mm, IP66, IK10, RAL 7035

MPN
NSYPLM32BG
EAN
3606480776489
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM32BG?

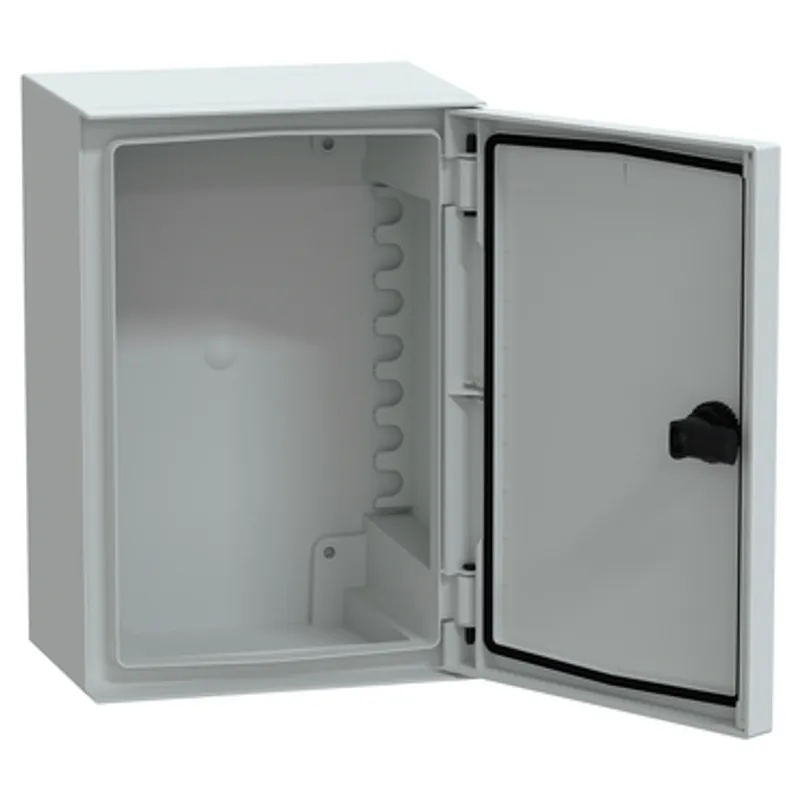

"This PLM is a multi-purpose wall-mounted enclosure that is suitable for a variety of applications" "It has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively" "The enclosure is made of ABS + PC, which offers durability and resistance to industrial and outdoor environments" "It comes in a grey (RAL 7035) color and consists of one body, one door, one lock, and one mounting plate" "The door is plain and can be opened from the front using the 3 mm double-bar lock" "The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529), as well as high resistance to impacts with an IK10 rating (IEC 62262)" "It also offers protection against electric shocks with a class II electrical insulation rating" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance" "The door is removable by hinges and the mounting plate is removable by fixing elements" "The enclosure is compliant with NEMA classification 13, IEC 62208, and NEMA classification 4X standards and offers a fire resistance of 960°C (IEC 62208)"

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure
Nominal height310 mm
Nominal width215 mm
Nominal depth160 mm
Enclosure mountingWall mounted
Device composition1 body, 1 door, 1 lock, 1 mounting plate
Door typePlain
Lock type3 mm double-bar lock
Number of locks1
Mounting plate descriptionPlain bakelite
Accessibility for operationFront
Removable partsDoor by hinges, Mounting plate by fixing element
MaterialABS + PC
ColourGrey (RAL 7035)
StandardsNEMA classification 13, IEC 62208, NEMA classification 4X
Product certificationsUL
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 32.500 cm × 17.500 cm × 24.000 cm (L × W × H), 1.666 kg
Package 270 P12, 120.000 cm × 80.000 cm × 129.000 cm (L × W × H), 129.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLM32BG: frequently asked questions

When can NSYPLM32BG be shipped?

NSYPLM32BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM32BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM32BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM32BG, subject to availability and destination.
