Schneider Electric NSYPLM32G

Wall mounted ABS + PC enclosure, PanelSeT PLM, plain door, 310x215x160mm, IP66, IK10, RAL 7035

MPN
NSYPLM32G
EAN
3606480776472
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM32G?

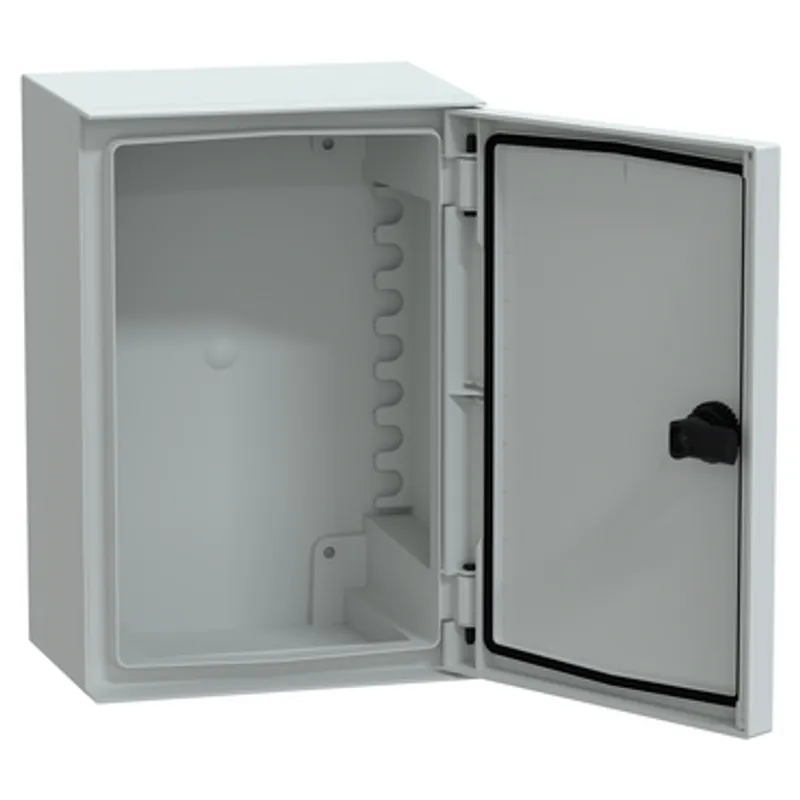

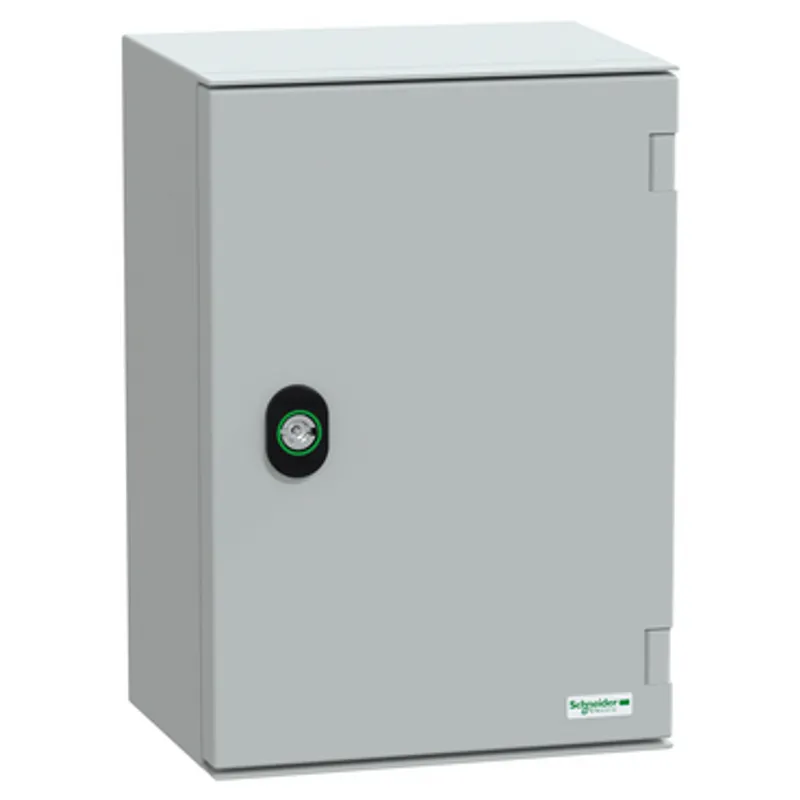

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS + PC, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one lock The door is plain and can be opened from the front and has a 3 mm double-bar lock The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure
Nominal height310 mm
Nominal width215 mm
Nominal depth160 mm
Enclosure mountingWall mounted
Device composition1 body, 1 door, 1 lock
Door typePlain
Lock type3 mm double-bar lock
Number of locks1
Mounting plate descriptionWithout mounting plate
Accessibility for operationFront
Removable partsDoor by hinges
MaterialABS + PC
ColourGrey (RAL 7035)
StandardsNEMA classification 4X, IEC 62208, NEMA classification 13
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 32.500 cm × 24.000 cm × 17.500 cm (L × W × H), 1.440 kg
Package 270 P12, 120.000 cm × 80.000 cm × 129.000 cm (L × W × H), 111.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLM32G: frequently asked questions

When can NSYPLM32G be shipped?

NSYPLM32G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM32G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM32G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM32G, subject to availability and destination.
