Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 500x500x320mm, IP44, IK10

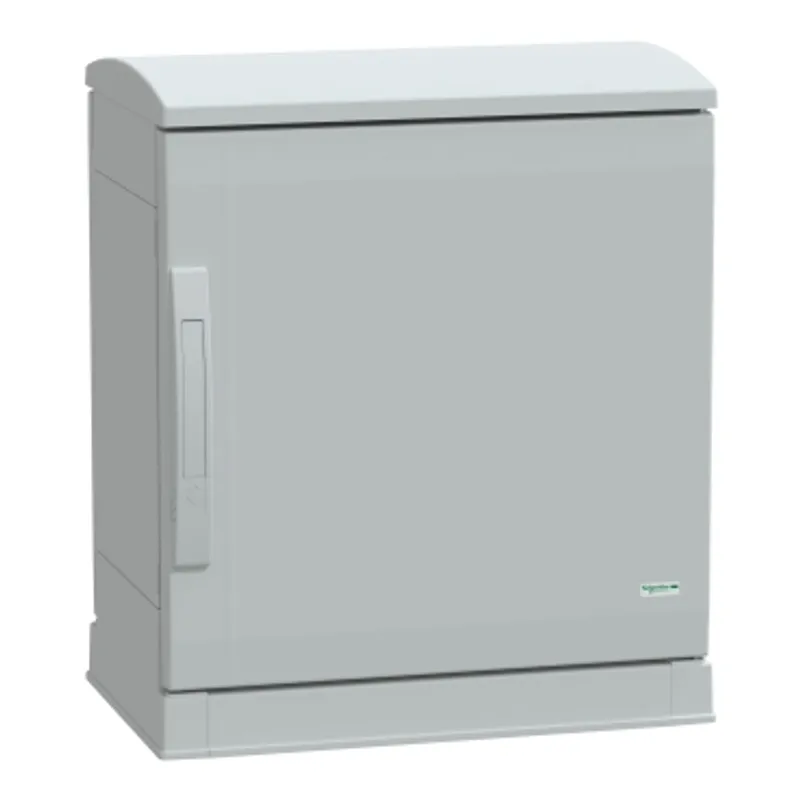

"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "The enclosure measures 500mm in height, 500mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside" "The door features a two-point handle lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure can withstand fire up to 960°C, in accordance with the IEC 62208 standard" "It is highly resistant to impacts, with an IK10 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP44 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZT |
| Nominal height | 500 mm |
| Nominal width | 500 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth |
| Body type | Open top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 2 points handle lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear, Top, Bottom |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 60.000 cm × 53.500 cm × 34.500 cm (L × W × H), 18.000 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 190.000 cm (L × W × H), 229.000 kg |
