Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 2000x750x420mm, IP44, IK10
Discontinued by Schneider Electric — we can still source the original NSYPLAZT2074G (new, used or refurbished, subject to availability). Request a quote below.

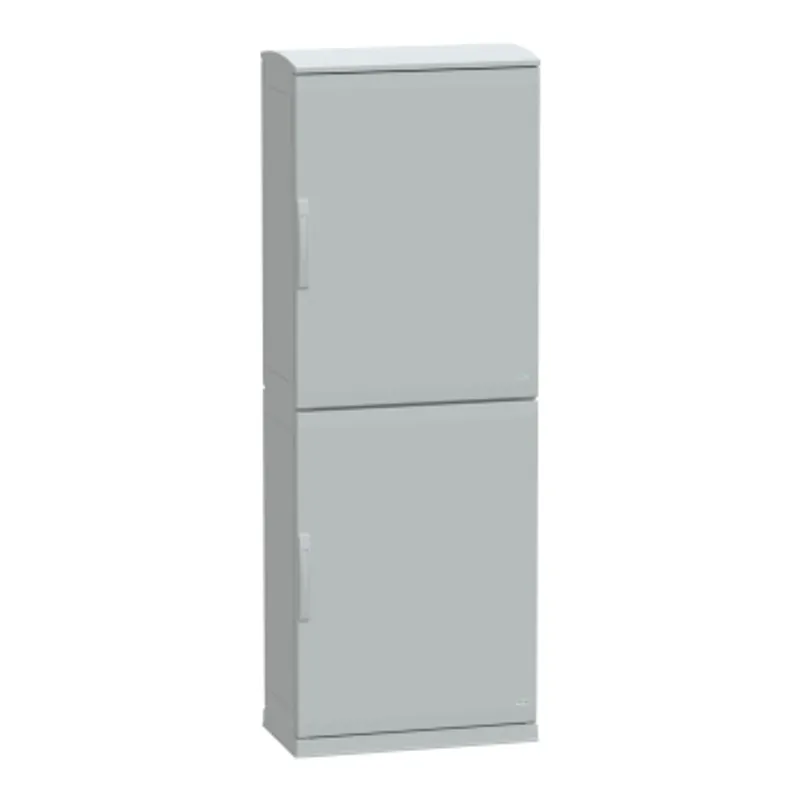

This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications The enclosure measures 2000mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) color and comprises two side parts, two plain front doors, two rear panels, one canopy, and one plinth The front doors are designed to open up to 180° from either the right or left side, providing easy access to the equipment inside The doors feature a four-point lock with a handle that has a 5mm double-bar insert The rear panels and doors can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure The enclosure can withstand fire up to 960°C, in accordance with the IEC 62208 standard It is highly resistant to impacts, with an IK10 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP44 rating as per IEC 60529 Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the building of totally insulated solutions The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZT |
| Nominal height | 2000 mm |
| Nominal width | 750 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth |
| Body type | Open top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 2 door(s) |
| Door opening side | Right and left (180 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Accessibility for operation | Bottom, Top, Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 50.000 cm × 80.000 cm × 216.000 cm (L × W × H), 68.400 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Yes. Schneider Electric has discontinued the NSYPLAZT2074G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
NSYPLAZT2074G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPLAZT2074G and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT2074G, subject to availability and destination.
