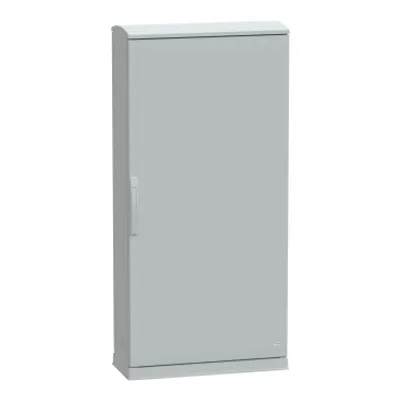

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1500x750x620mm, IP44, IK10
"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 1500mm, width of 750mm, and depth of 620mm" "The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both indoor and outdoor" "It comes in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, one canopy, and one plinth" "The door can be opened up to 180° from either the right or left side, and has a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door are removable for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure is designed to offer robust protection against fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK10 rating (IEC 62262) for high resistance to impacts" "It is rated IP44 (IEC 60529) for high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZT |
| Nominal height | 1500 mm |
| Nominal width | 750 mm |
| Nominal depth | 620 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth |
| Body type | Open top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (180 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Accessibility for operation | Top, Front, Rear, Bottom |
| Removable parts | Door by hinges, Rear panel by fixing element, Canopy by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 65.000 cm × 78.000 cm × 153.000 cm (L × W × H), 48.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
NSYPLAZT1576G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPLAZT1576G and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT1576G, subject to availability and destination.
