Schneider Electric NSYPLAZT1574G

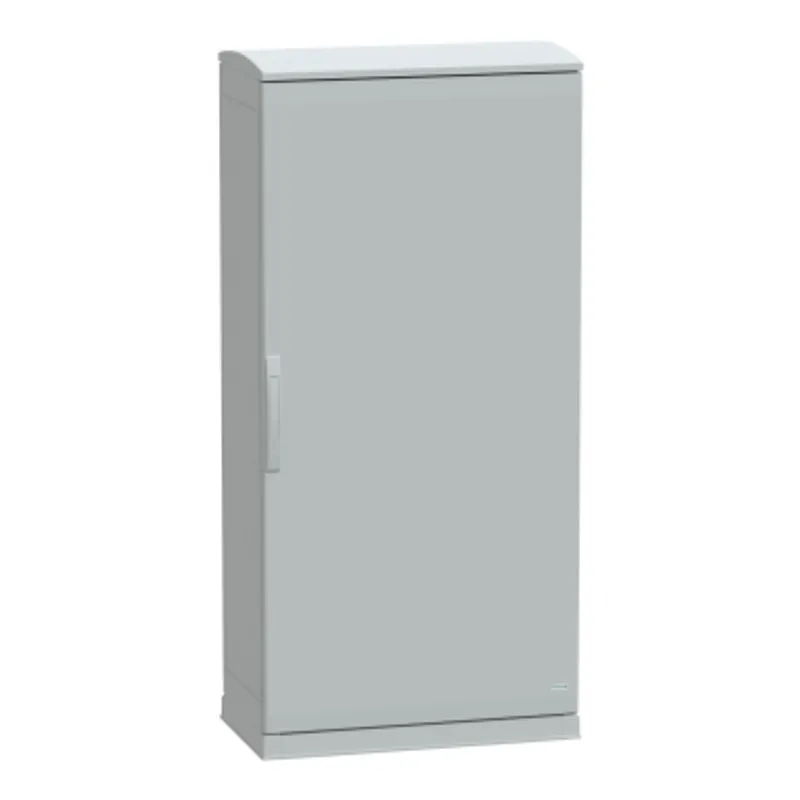

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1500x750x420mm, IP44, IK10

MPN
NSYPLAZT1574G
EAN
3606480776182
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPLAZT1574G (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZT1574G?

This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for a variety of applications It has a nominal height of 1500mm, a width of 750mm, and a depth of 420mm The enclosure is constructed from polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both indoor and outdoor It is available in a grey (RAL 7035) color The enclosure consists of two side parts, one plain front door, one rear panel, one canopy, and one plinth The front door opens up to 180° from either the right or left side, allowing for easy access to the equipment inside The door features a four-point lock with a handle that has a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure The enclosure is designed to withstand fire up to 960°C in accordance with the IEC 62208 standard It has an IK10 rating according to IEC 62262, indicating high resistance to impacts It is also rated IP44 (IEC 60529), offering excellent protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZT
Nominal height1500 mm
Nominal width750 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
Body typeOpen top and bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (180 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationFront, Top, Rear, Bottom
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 159.000 cm × 79.000 cm × 47.500 cm (L × W × H), 47.500 kg
Package 22 PAM, 120.000 cm × 100.000 cm × 173.000 cm (L × W × H), 108.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZT1574G: frequently asked questions

Can I still buy the NSYPLAZT1574G now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPLAZT1574G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPLAZT1574G be shipped?

NSYPLAZT1574G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZT1574G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZT1574G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT1574G, subject to availability and destination.
