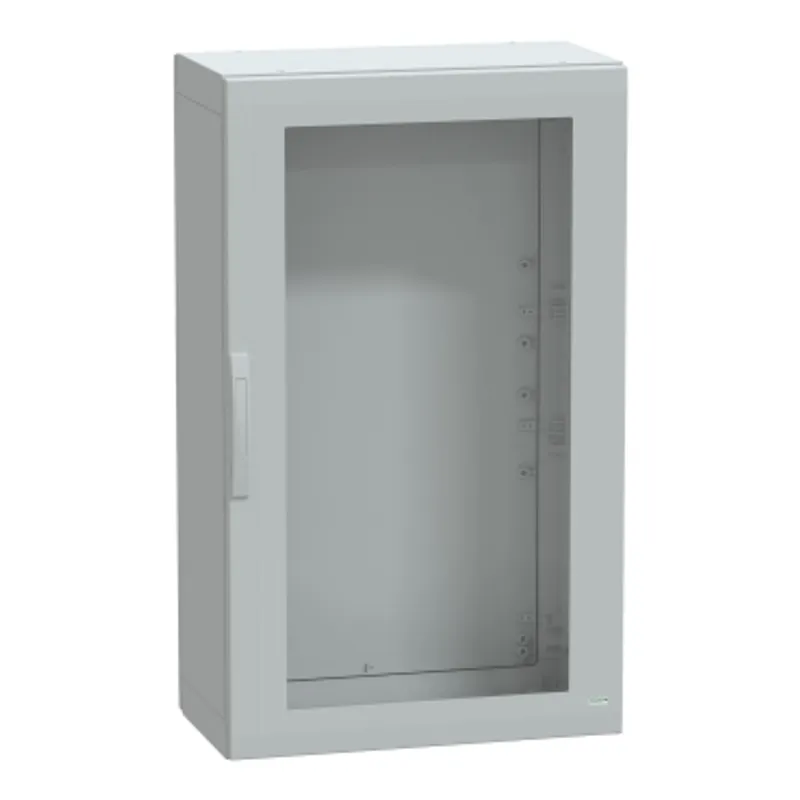

Schneider Electric NSYPLA1274TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1250x750x420mm, IP65, IK08

MPN
NSYPLA1274TG
EAN
3606480774669
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLA1274TG?

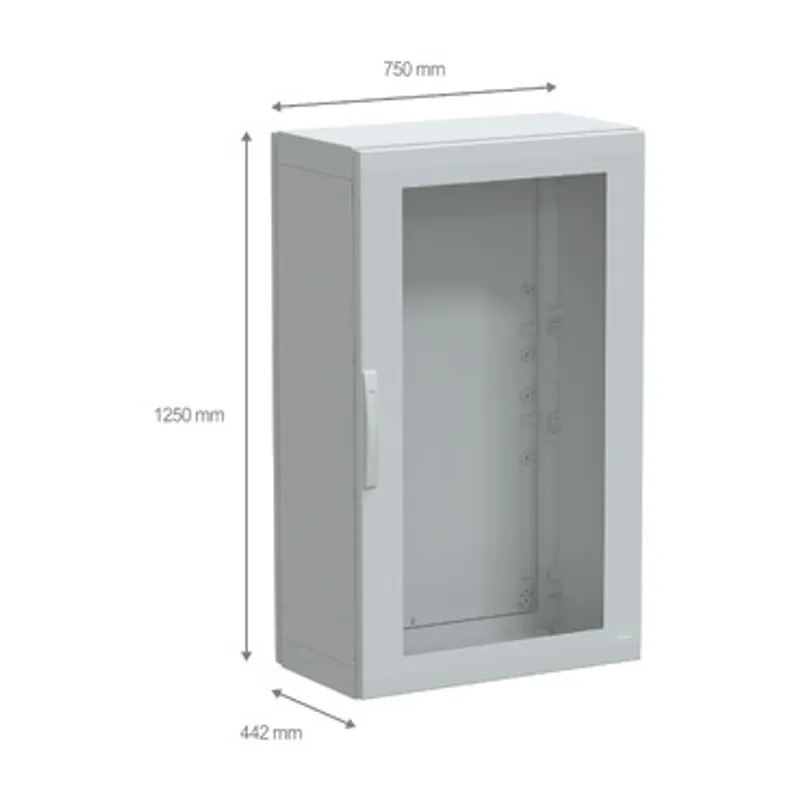

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications The enclosure measures 1250mm in height, 750mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) color and comprises two side parts, one transparent front door, and one rear panel The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door features a four-point lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLA
Nominal height1250 mm
Nominal width750 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door
Body typeSealed top and bottom part assembled with side parts
Door typeTransparent front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type4 points lock, 5 mm double-bar
Accessibility for operationFront, Rear
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208, UL 508 A
NEMA degree of protectionNEMA 3X, NEMA 3, NEMA 3R, NEMA 12, NEMA 1, NEMA 5, NEMA 3S, NEMA 13, NEMA 2
Product certificationsDNV Marine, Veritas, UL/cUL listed
Electrical insulation classClass II
IP degree of protectionIP65 conforming to IEC 60529 (completely sealed)
IK degree of protectionIK08 conforming to IEC 62262 (glazed door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 126.000 cm × 79.000 cm × 47.500 cm (L × W × H), 47.000 kg
Package 22 PAM, 120.000 cm × 100.000 cm × 143.000 cm (L × W × H), 107.000 kg
