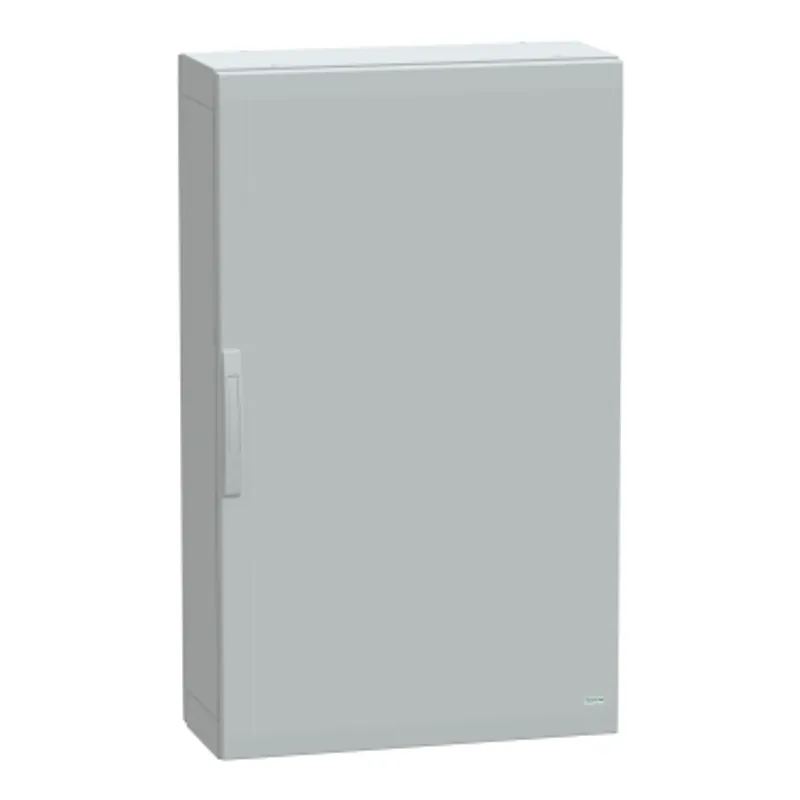

Schneider Electric NSYPLA1273G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1250x750x320mm, IP65, IK10
- MPN
- NSYPLA1273G
- EAN
- 3606480774638
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA1273G?
This PLA version of the Thalassa PLA is a versatile, floor-standing enclosure that is suitable for various applications It is composed of a sealed top and bottom part, assembled with two side parts The enclosure measures 1250mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) and comes with one plain front door, one rear panel, and one plinth The door is designed to open up to 120° from either the right or left side, allowing easy access to the equipment inside It features a four-point lock with a 5mm double-bar insert for added security The door and rear panel are removable for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |

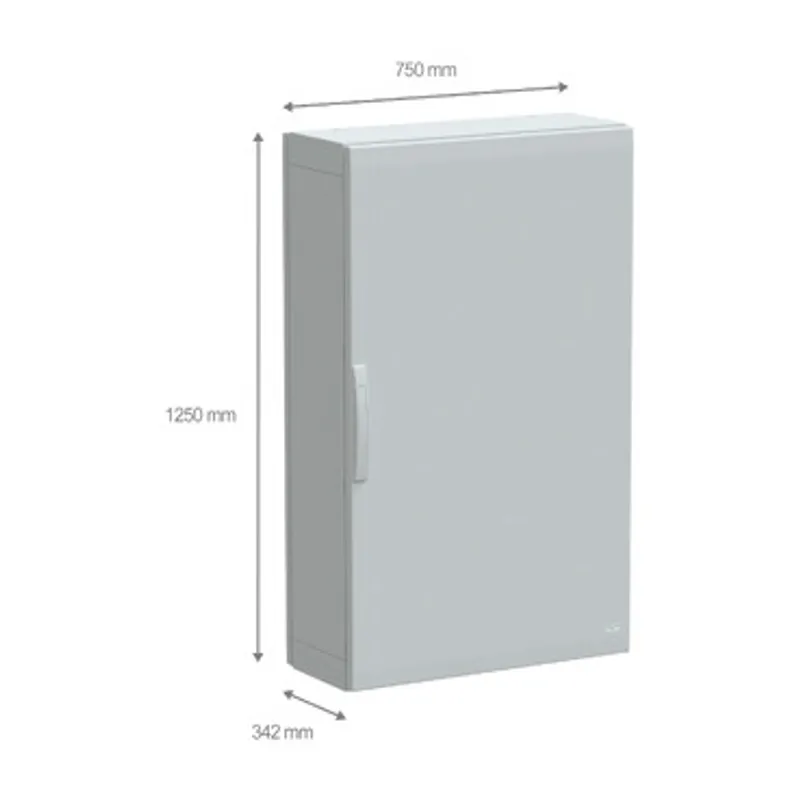

| Nominal height | 1250 mm |
| Nominal width | 750 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 2, NEMA 1, NEMA 3, NEMA 12, NEMA 13, NEMA 3S, NEMA 5, NEMA 3X, NEMA 3R |
| Product certifications | DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 126.000 cm × 78.000 cm × 34.500 cm (L × W × H), 32.640 kg |
| Package 2 | 3 PAM, 120.000 cm × 100.000 cm × 139.000 cm (L × W × H), 113.000 kg |
