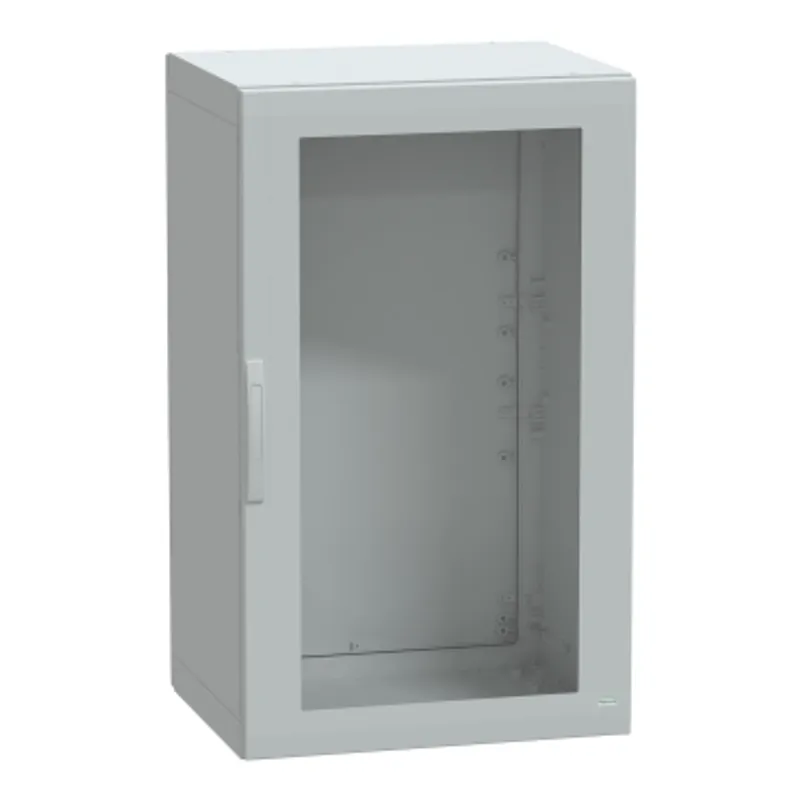

Schneider Electric NSYPLA1276TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1250x750x620mm, IP65, IK08

MPN
NSYPLA1276TG
EAN
3606485434476
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLA1276TG?

"This PLA is a versatile, floor-standing enclosure suitable for multiple purposes" "It is 1250mm in height, 750mm in width, and 620mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) and consists of two side parts, one rear panel, and one transparent front door" "The door can open up to 120° from either the right or left side, allowing easy access to the equipment inside" "The door is secured with a four-point lock and a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure is certified by DNV Marine, UL/cUL listed, and Veritas, and meets the UL 508 A and IEC 62208 standards" "It offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The NEMA degree of protection is NEMA 3, NEMA 3S, NEMA 13, NEMA 5, NEMA 1, NEMA 12, NEMA 2, NEMA 3X, and NEMA 3R" "It is also IK08 rated (IEC 62262) and IP65 rated (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLA
Nominal height1250 mm
Nominal width750 mm
Nominal depth620 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door
Body typeSealed top and bottom part assembled with side parts
Door typeTransparent front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type4 points lock, 5 mm double-bar
Accessibility for operationRear, Front
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsUL 508 A, IEC 62208
NEMA degree of protectionNEMA 3, NEMA 3S, NEMA 13, NEMA 5, NEMA 1, NEMA 12, NEMA 2, NEMA 3X, NEMA 3R
Product certificationsDNV Marine, UL/cUL listed, Veritas
Electrical insulation classClass II
IP degree of protectionIP65 conforming to IEC 60529 (completely sealed)
IK degree of protectionIK08 conforming to IEC 62262 (glazed door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 126.000 cm × 78.000 cm × 65.000 cm (L × W × H), 47.000 kg
