Schneider Electric NSYPLA15103TG

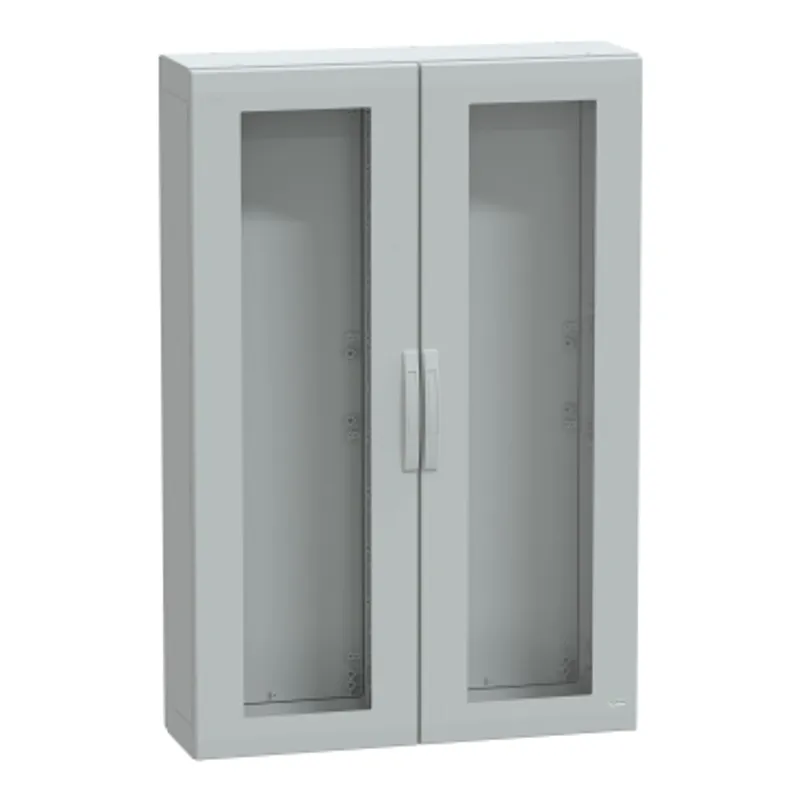

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1500x1000x320mm, IP65, IK08
- MPN
- NSYPLA15103TG
- EAN
- 3606480774683
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA15103TG?
This PLA version of the PanelSeT is a multi-purpose, floor-standing enclosure that can be used for various applications It has nominal dimensions of 1500mm in height, 1000mm in width, and 320mm in depth The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh conditions, including outdoor and industrial settings It is available in grey (RAL 7035) and consists of two side parts, two transparent front doors, and two rear panels The doors can be opened from both the right and left sides up to 120°, and feature a four-point lock and a 5mm double-bar insert The doors and rear panels are removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard It is rated IK08 (IEC 62262), indicating high resistance to impacts, and IP65 (IEC 60529), providing excellent protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed and DNV Marine certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1500 mm |
| Nominal width | 1000 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Transparent front |
| Number of doors | 2 door(s) |
| Door opening side | Right and left (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 2, NEMA 1, NEMA 12, NEMA 13 |
| Product certifications | Veritas, UL/cUL listed, DNV Marine |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 151.500 cm × 103.000 cm × 36.000 cm (L × W × H), 59.800 kg |
| Package 2 | 3 PAM, 120.000 cm × 100.000 cm × 165.000 cm (L × W × H), 194.000 kg |
