Schneider Electric NSYPLA1054G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x420mm, IP65, IK10
- MPN
- NSYPLA1054G
- EAN
- 3606480774454
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA1054G?

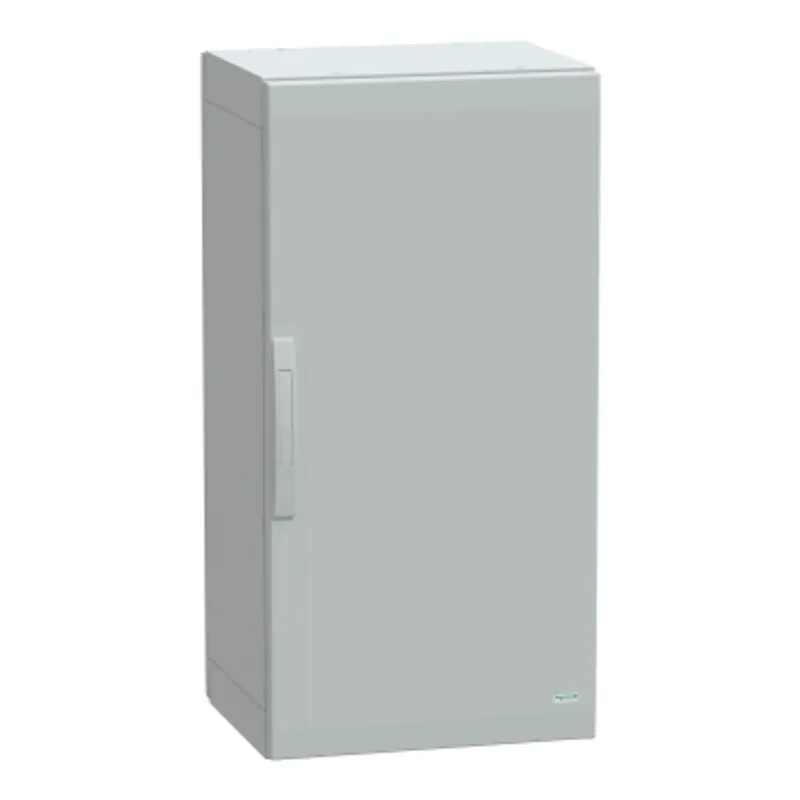

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 1000mm in height, 500mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) color and comprises two side parts, one plain front door, and one rear panel The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside The door features a four-point lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1000 mm |
| Nominal width | 500 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 5, NEMA 13, NEMA 3X, NEMA 2, NEMA 3R, NEMA 3, NEMA 12, NEMA 1, NEMA 3S |
| Product certifications | Veritas, DNV Marine, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 47.500 cm × 53.000 cm × 100.000 cm (L × W × H), 24.750 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 115.000 cm (L × W × H), 111.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPLA1054G: frequently asked questions
When can NSYPLA1054G be shipped?
NSYPLA1054G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLA1054G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLA1054G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA1054G, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYPLA10124TGFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1250x420mm, IP65, IK08
Schneider Electric
NSYPLA1053GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x320mm, IP65, IK10
Schneider Electric
NSYPLA1053TGFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x320mm, IP65, IK08
Schneider Electric
NSYPLA1054TGFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x420mm, IP65, IK08
Schneider Electric

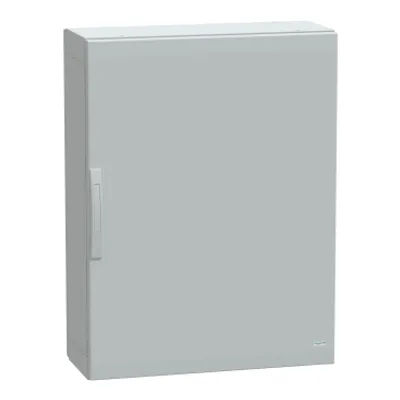

NSYPLA1073GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x750x320mm, IP65, IK10
Schneider Electric

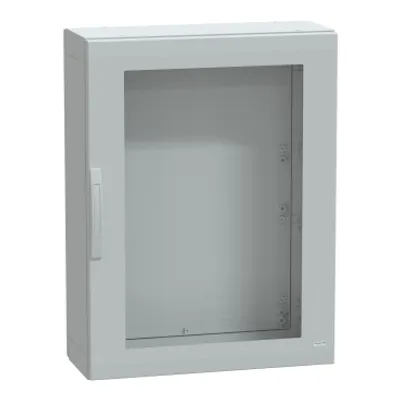

NSYPLA1073TGFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x750x320mm, IP65, IK08
