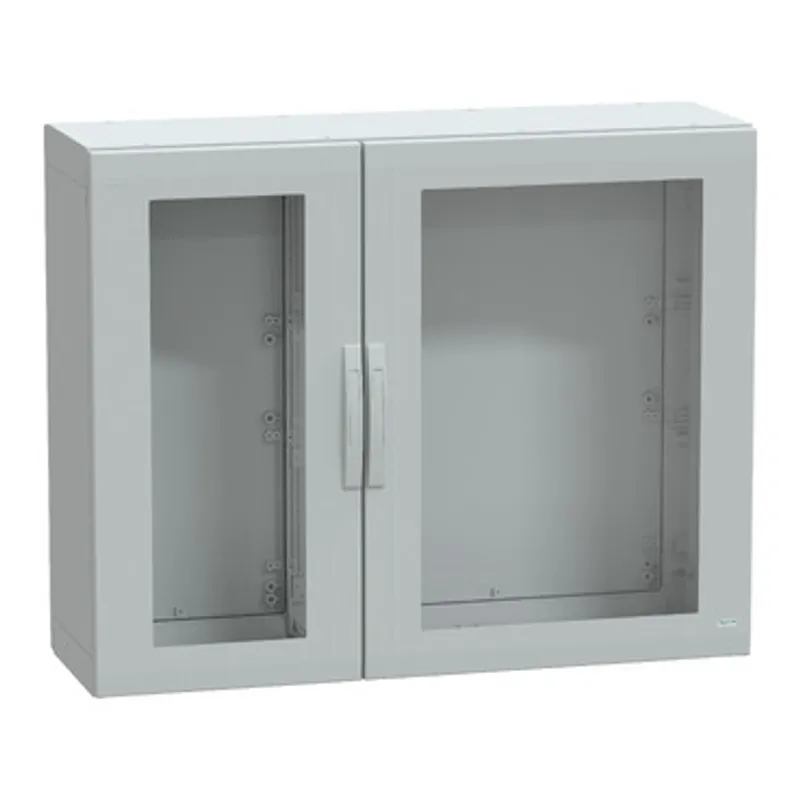

Schneider Electric NSYPLA10124TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1250x420mm, IP65, IK08

MPN
NSYPLA10124TG
EAN
3606480774423
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLA10124TG?

"This PLA is a multi-purpose, floor-standing unit that is suitable for various applications" "It has a nominal height of 1000mm, a width of 1250mm, and a depth of 420mm" "The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments" "It is available in grey (RAL 7035) color and consists of two side parts, two transparent front doors, and two rear panels" "The doors can open up to 120° from either the right or left side, and feature a four-point lock with a 5mm double-bar insert" "The doors and rear panels are removable for easy maintenance" "The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK08 rating (IEC 62262) for resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is DNV Marine, UL/cUL listed, and Veritas certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLA
Nominal height1000 mm
Nominal width1250 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
Body typeSealed top and bottom part assembled with side parts
Door typeTransparent front
Number of doors2 door(s)
Door opening sideRight and left (120 °)
Lock type4 points lock, 5 mm double-bar
Accessibility for operationFront, Rear
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsUL 508 A, IEC 62208
NEMA degree of protectionNEMA 13, NEMA 2, NEMA 1, NEMA 12
Product certificationsDNV Marine, UL/cUL listed, Veritas
Electrical insulation classClass II
IP degree of protectionIP65 conforming to IEC 60529 (completely sealed)
IK degree of protectionIK08 conforming to IEC 62262 (glazed door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 49.000 cm × 101.000 cm × 127.000 cm (L × W × H), 54.000 kg
Package 22 PAL, 130.000 cm × 100.000 cm × 114.000 cm (L × W × H), 130.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLA10124TG: frequently asked questions

When can NSYPLA10124TG be shipped?

NSYPLA10124TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLA10124TG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLA10124TG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA10124TG, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPLA10104TG – Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1000x420mm, IP65, IK08
Schneider Electric
NSYPLA10104TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1000x420mm, IP65, IK08

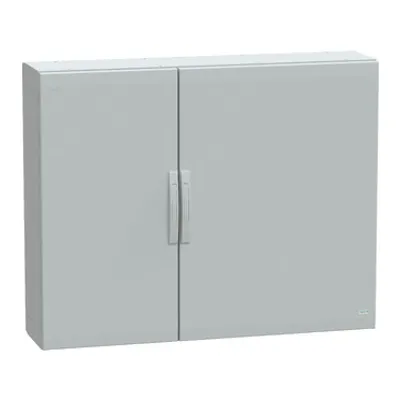

Schneider Electric NSYPLA10123G – Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1250x320mm, IP65, IK10
Schneider Electric
NSYPLA10123G

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1250x320mm, IP65, IK10

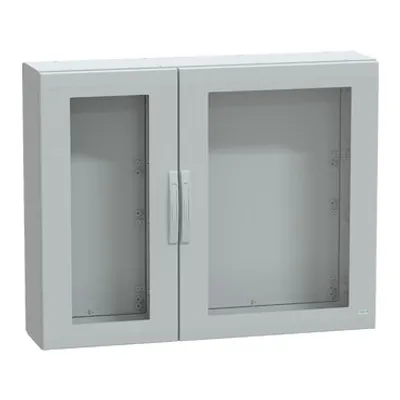

Schneider Electric NSYPLA10123TG – Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1250x320mm, IP65, IK08
Schneider Electric
NSYPLA10123TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1250x320mm, IP65, IK08

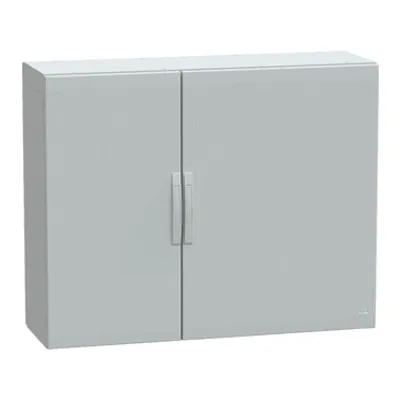

Schneider Electric NSYPLA10124G – Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1250x420mm, IP65, IK10
Schneider Electric
NSYPLA10124G

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1250x420mm, IP65, IK10

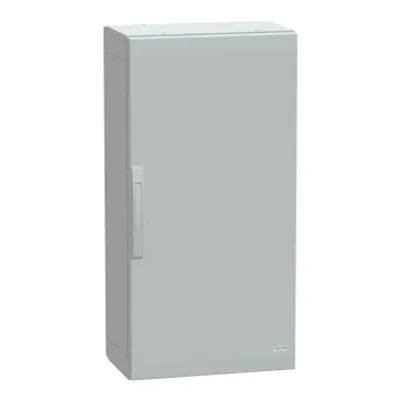

Schneider Electric NSYPLA1053G – Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x320mm, IP65, IK10
Schneider Electric
NSYPLA1053G

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x320mm, IP65, IK10

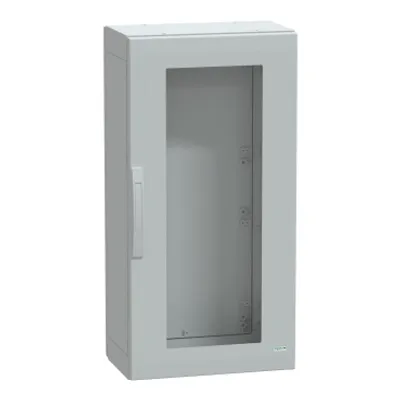

Schneider Electric NSYPLA1053TG – Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x320mm, IP65, IK08
Schneider Electric
NSYPLA1053TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x320mm, IP65, IK08

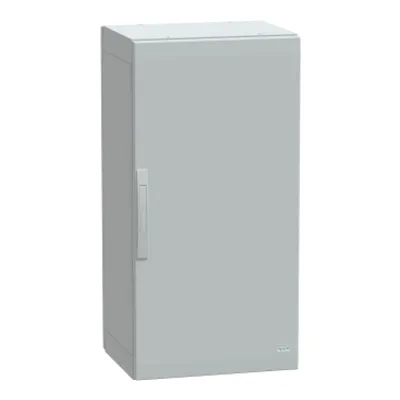

Schneider Electric NSYPLA1054G – Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x420mm, IP65, IK10
Schneider Electric
NSYPLA1054G

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x420mm, IP65, IK10

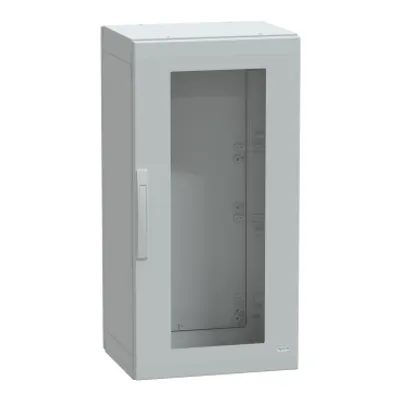

Schneider Electric NSYPLA1054TG – Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x420mm, IP65, IK08
