Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x1250x320mm, IP65, IK08
Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1000x500x320mm, IP65, IK08

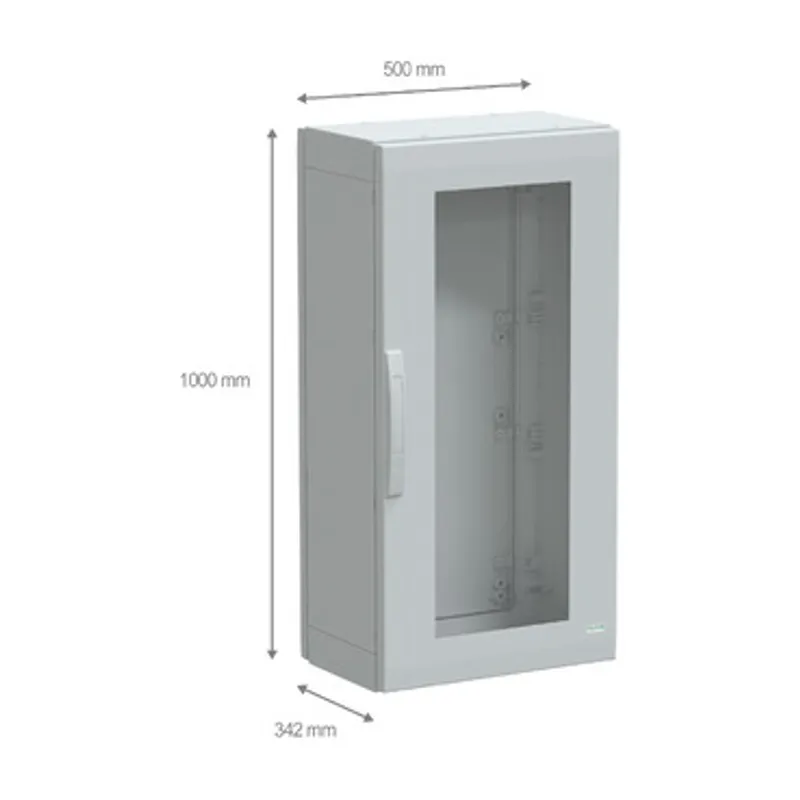

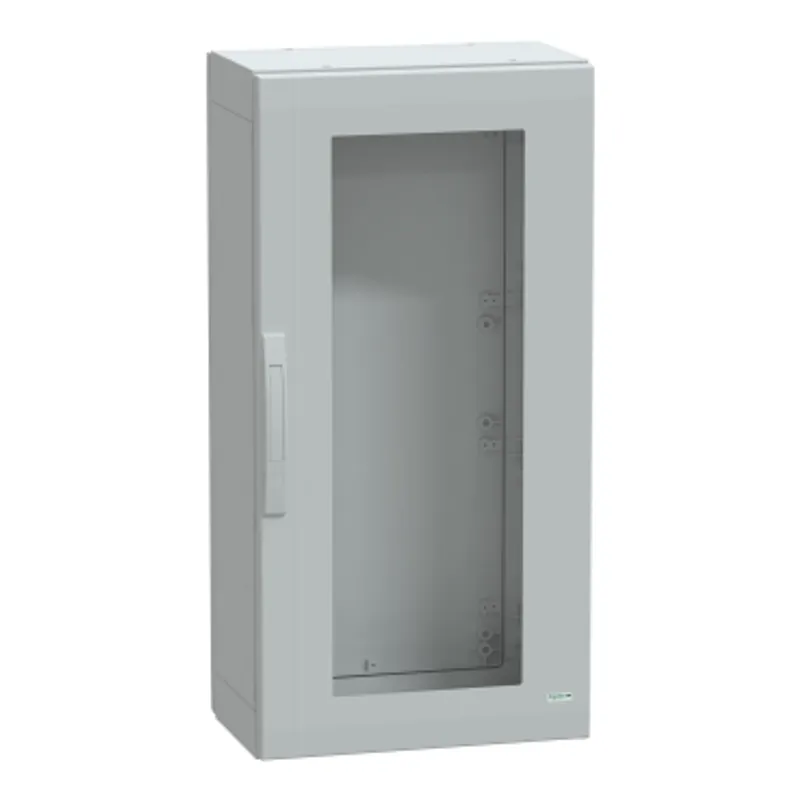

"This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It measures 1000mm in height, 500mm in width, and 320mm in depth, and is made of polyester reinforced with fibreglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) color and comprises two side parts, one transparent front door, and one rear panel" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure is certified by DNV Marine, UL/cUL listed, and Veritas and is compliant with the IEC 62208 and UL 508 A standards" "It is highly resistant to impacts, with an IK08 rating according to IEC 62262, and provides excellent protection against dust and water, with an IP65 rating as per IEC 60529" "Furthermore, the enclosure has Class II electrical insulation, which prevents electric shocks and allows for the construction of completely insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance"
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1000 mm |
| Nominal width | 500 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Transparent front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 3S, NEMA 3, NEMA 12, NEMA 13, NEMA 5, NEMA 2, NEMA 3X, NEMA 1, NEMA 3R |
| Product certifications | DNV Marine, UL/cUL listed, Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 38.000 cm × 53.500 cm × 101.000 cm (L × W × H), 24.000 kg |
| Package 2 | 5 PAM, 120.000 cm × 100.000 cm × 116.000 cm (L × W × H), 137.500 kg |
Official documents from Schneider Electric, downloaded directly from the manufacturer.
NSYPLA1053TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPLA1053TG and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA1053TG, subject to availability and destination.
