NSYPLA10123GFloor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x1250x320mm, IP65, IK10
Schneider Electric NSYPLA1053G
Floor standing polyester enclosure, PanelSeT PLA, plain door, completely , 1000x500x320mm, IP65, IK10
- MPN
- NSYPLA1053G
- EAN
- 3606480774430
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPLA1053G?

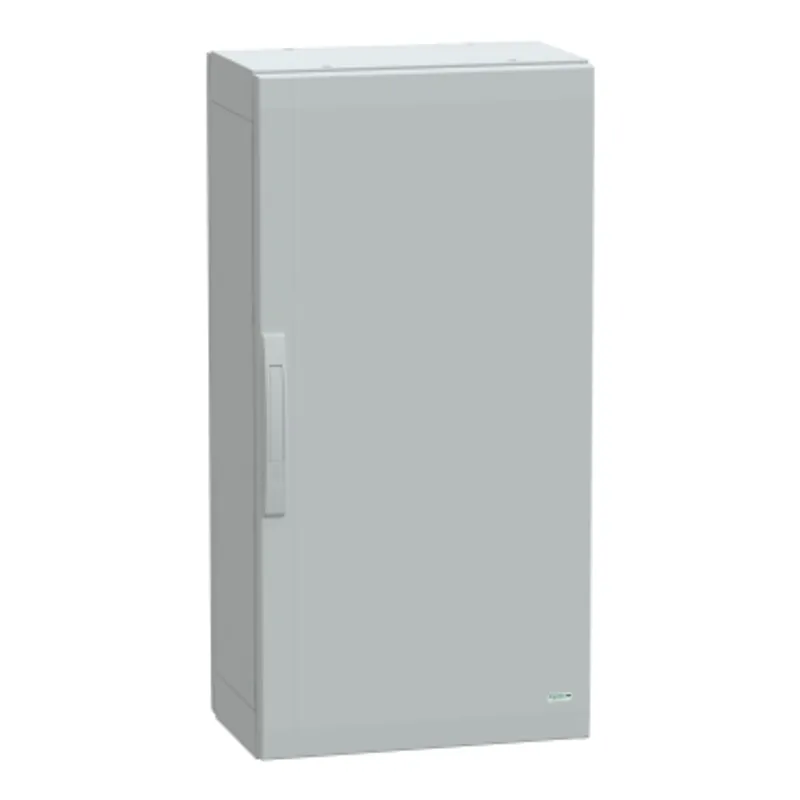

This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal height of 1000mm, a width of 500mm, and a depth of 320mm, and is made of polyester reinforced with fiberglass This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035), and is composed of a sealed top and bottom part, assembled with side parts It features a single plain front door that can be opened up to 120° from either the right or left side, providing easy access to the equipment inside The door is secured with a four-point lock and a 5mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1000 mm |
| Nominal width | 500 mm |
| Nominal depth | 320 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| NEMA degree of protection | NEMA 13, NEMA 12, NEMA 3S, NEMA 2, NEMA 1, NEMA 5, NEMA 3X, NEMA 3, NEMA 3R |
| Product certifications | Veritas, DNV Marine, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
Packaging
| Package 1 | 1 PCE, 101.000 cm × 53.000 cm × 35.000 cm (L × W × H), 22.500 kg |
| Package 2 | 5 PAM, 120.000 cm × 100.000 cm × 115.000 cm (L × W × H), 123.000 kg |
