Schneider Electric NSYMDVR3M

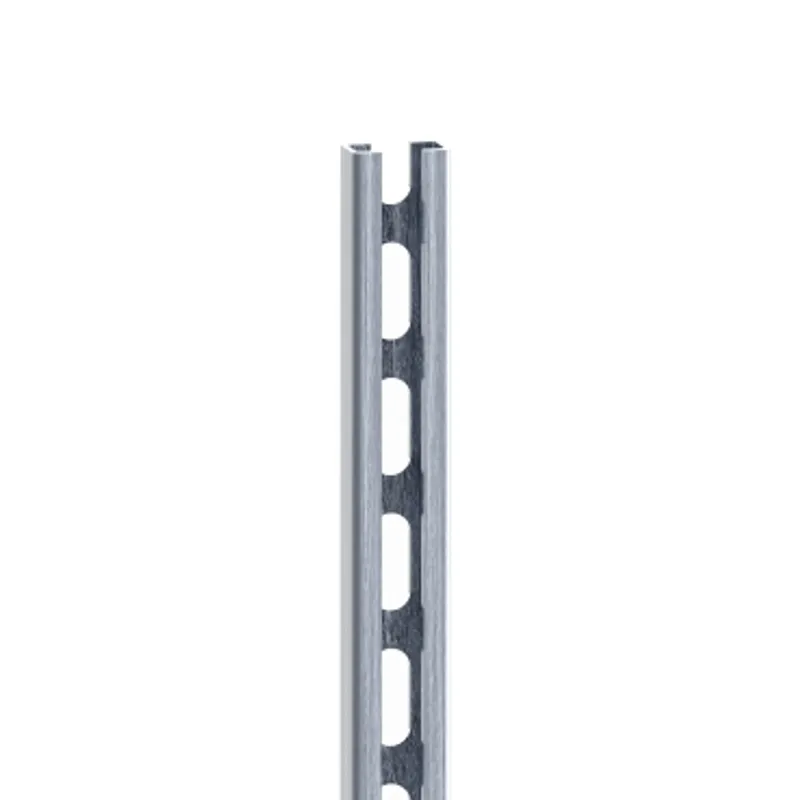

Vertical aluminium rail, length: 3m. Packaging unit: 10.
- MPN
- NSYMDVR3M
- EAN
- 3606480182914
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYMDVR3M (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMDVR3M?
Set of 10 2,5mm thick aluminium rails for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The width is 25mm The depth is 15mm Length is 3000mm The uprights are used for mounting chassis and fixing wiring accessories Fixed by screws of type M8 on backstuds of enclosure location The product is made of 10 x 1 upright Net weight is 0,85kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Rail |
| device application | Multi-purpose |
| enclosure nominal dimensions | - |
| Mounting support | Fixing nut |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT S3X, PanelSeT PLM |
| Device composition | 1 upright |
| Quantity per set | Set of 10 |
| Material | Aluminium |
| Fixing mode | Screwed - screw type M8 - on backstuds of enclosure location |
| Length | 3000 mm |
| Width | 25 mm |
| Depth | 15 mm |
| thickness | 2.5 mm |
| Net weight | 0.85 kg |
Packaging
| Package 1 | 1 PCE, 3.500 cm × 1.000 cm × 300.000 cm (L × W × H), 850.000 g |
| Package 2 | 10 CAR, 3.500 cm × 10.000 cm × 300.000 cm (L × W × H), 8.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMDVR3M: frequently asked questions
Can I still buy the NSYMDVR3M now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYMDVR3M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYMDVR3M be shipped?
NSYMDVR3M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMDVR3M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMDVR3M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMDVR3M, subject to availability and destination.
