Schneider Electric NSYGB140

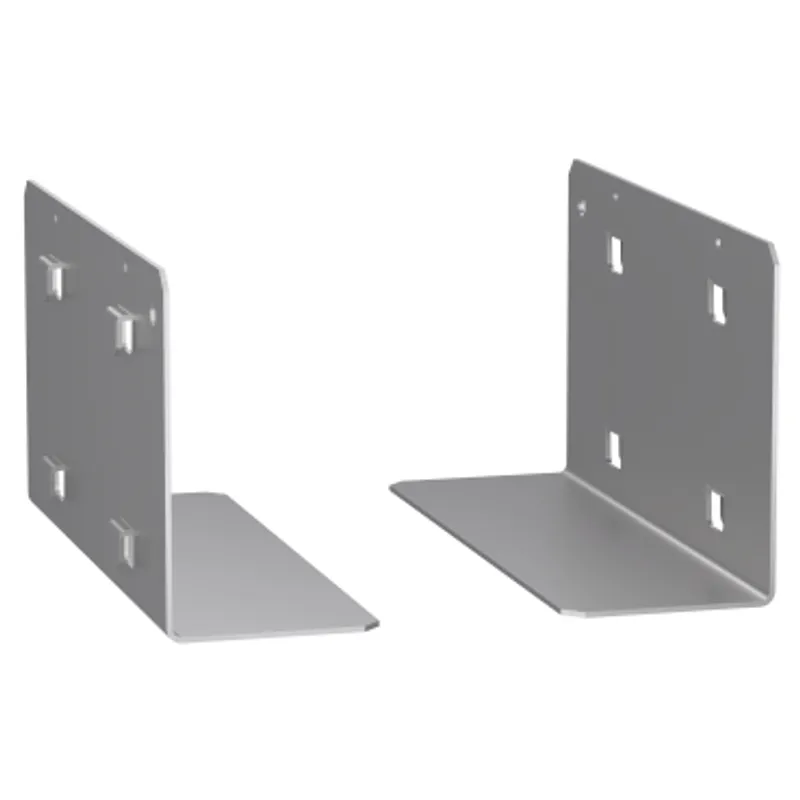

19" 2 U partial fixed slides - Fixing onto 19" front uprights - 15 kg load
- MPN
- NSYGB140
- EAN
- 3606480066757
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYGB140?

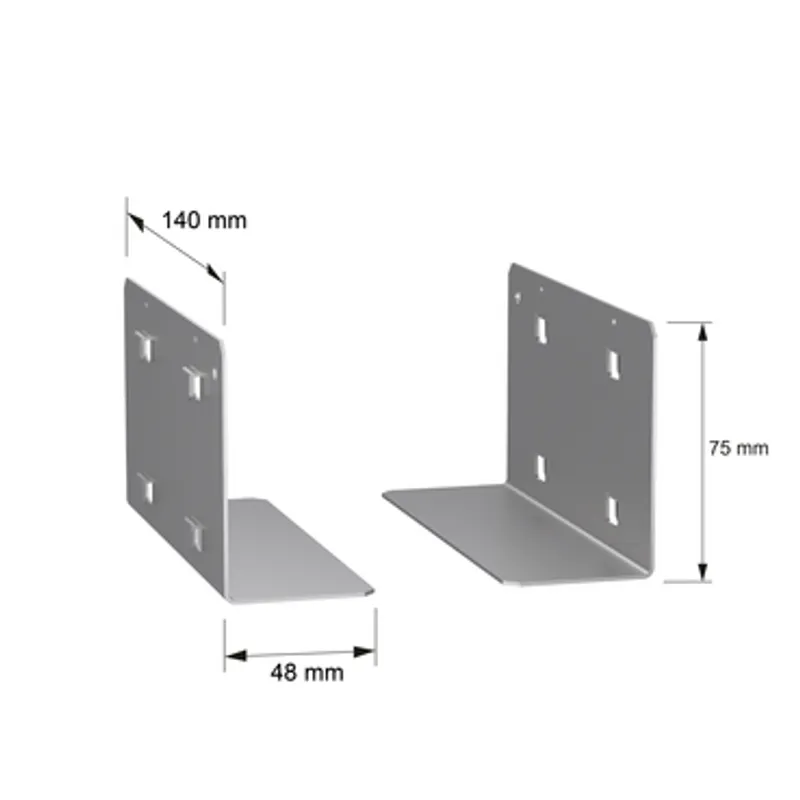

Fixed slide 19" for using with Actassi VDA and Actassi VDS Actassi enclosures Compatible with PanelSeT SF-S, SF-E, VDM, PLA enclosures Fixing to 19" rack, front or rear by clips Can be used for electronic and multi-purpose applications Made of 1,2mm thick zinc coated sheet steel The width is 140mm, height is 88,9mm and depth is 44mm Permanent permissable load is 15kg
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Fixed slide |
| Device application | Electronic application, Multi-purpose |
| Quantity per set | Set of 1 |
| Range compatibility | Actassi VDA, Actassi VDS |
| Material | Steel |
| Surface finish | Zinc coated |
| Mounting support | 19" rack, front or rear |
| Product compatibility | PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Device composition | Fixing elements, 2 rails |
| Fixing mode | By clips: 19" uprights of rack |
| Number of rack unit | 2U |
| Permanent permissible load | 15 kg |
| thickness | 1.2 mm |
| Number of units 19" | 2 |
| Height | 88.9 mm |
| Width | 140 mm |
| Depth | 44 mm |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 14.000 cm × 5.500 cm (L × W × H), 390.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYGB140: frequently asked questions
When can NSYGB140 be shipped?
NSYGB140 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYGB140 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYGB140 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYGB140, subject to availability and destination.
