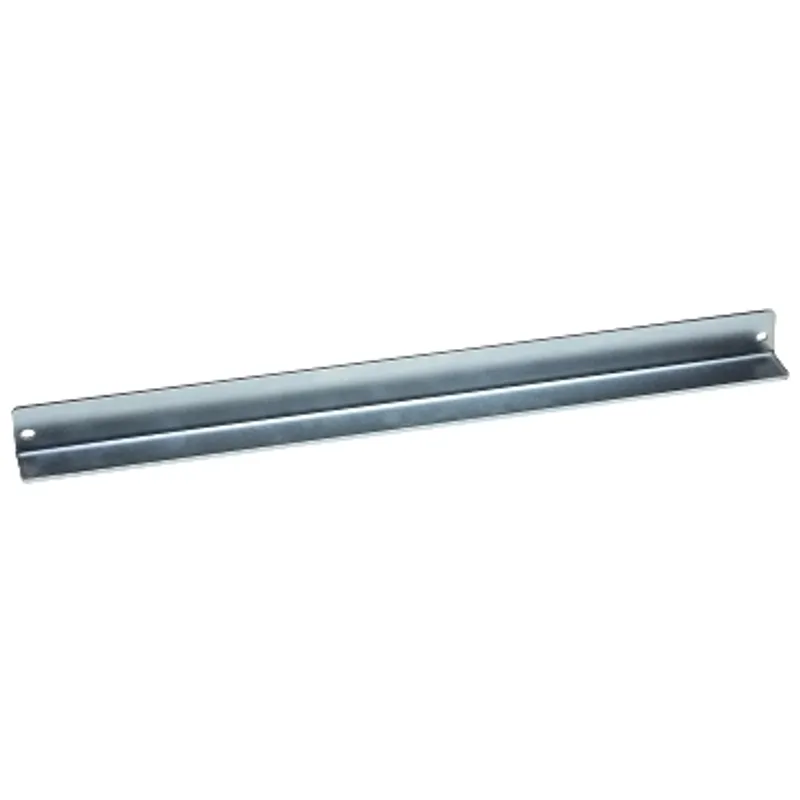

Schneider Electric NSYFCG80
L-rail for fixing cables, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel, W800mm
- MPN
- NSYFCG80
- EAN
- 3606480064487
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFCG80?
This is a L-rail for fixing cables. It is made of zinc coated steel for use in PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. The nominal width is 800mm and the fixing center-to-center distance is 750mm. The cables are fixed to the rail by means of metal clamps. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports. The cables are fixed to the rail by means of metal clamps. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports.
Specifications
Specifications
| Range | PanelSeT |
| Category | Cabling accessory |
| Product or component type | Rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom frame of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Device composition | Fixing elements, 1 rail, 2 mounting support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | Metal clamp |
| Adjustment | Adjustable in depth every 25 mm |
| fixing center | 750 mm |
| Width | Nominal: 800 mm |
Packaging
| Package 1 | 1 PCE, 78.000 cm × 5.500 cm × 5.000 cm (L × W × H), 1.912 kg |
| Package 2 | 100 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 204.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFCG80: frequently asked questions
When can NSYFCG80 be shipped?
NSYFCG80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFCG80 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFCG80 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFCG80, subject to availability and destination.
