Schneider Electric NSYFCG100

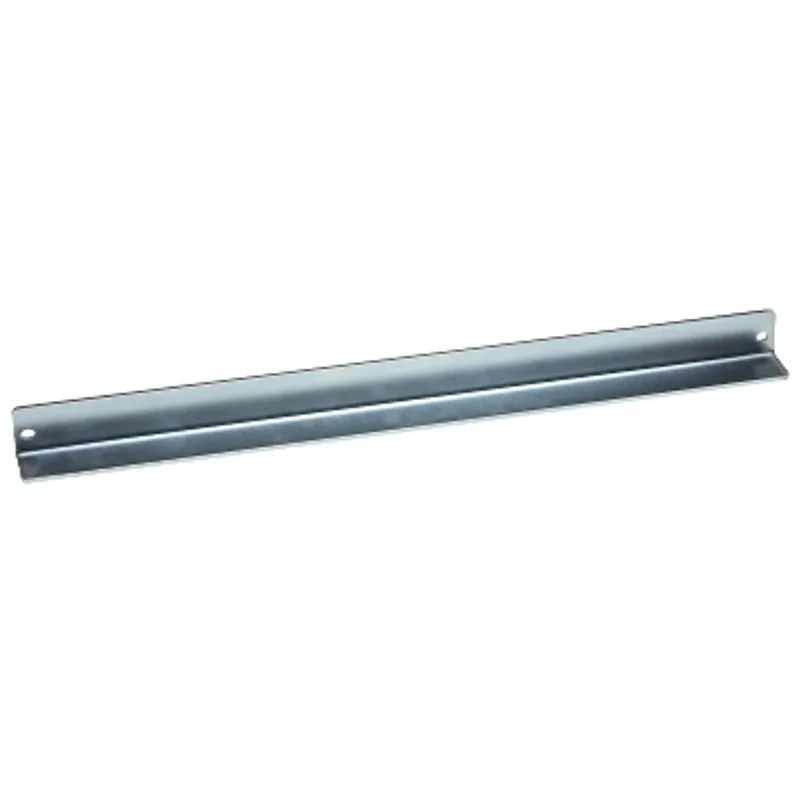

L-rail for fixing cables, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel, W1000mm
- MPN
- NSYFCG100
- EAN
- 3606480064449
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFCG100?
This is a L-rail for fixing cables. It is made of zinc coated steel for use in PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. The nominal width is 1000mm and the fixing center-to-center distance is 950mm. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports. In PanelSeT SM/SMX enclosures the rail is fixed to the bottom adjustment rails, above the cable entry, or else to the plinth, using the plinth cross-rails. The cables are fixed to the rail by means of metal clamps. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports.
Specifications
Specifications
| Range | PanelSeT |
| Category | Cabling accessory |
| Product or component type | Rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom frame of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Device composition | Fixing elements, 1 rail, 2 mounting support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | Metal clamp |
| Adjustment | Adjustable in depth every 25 mm |
| fixing center | 950 mm |
| Width | Nominal: 1000 mm |
Packaging
| Package 1 | 1 PCE, 97.500 cm × 5.000 cm × 5.000 cm (L × W × H), 2.388 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 30.000 cm (L × W × H), 132.000 kg |
