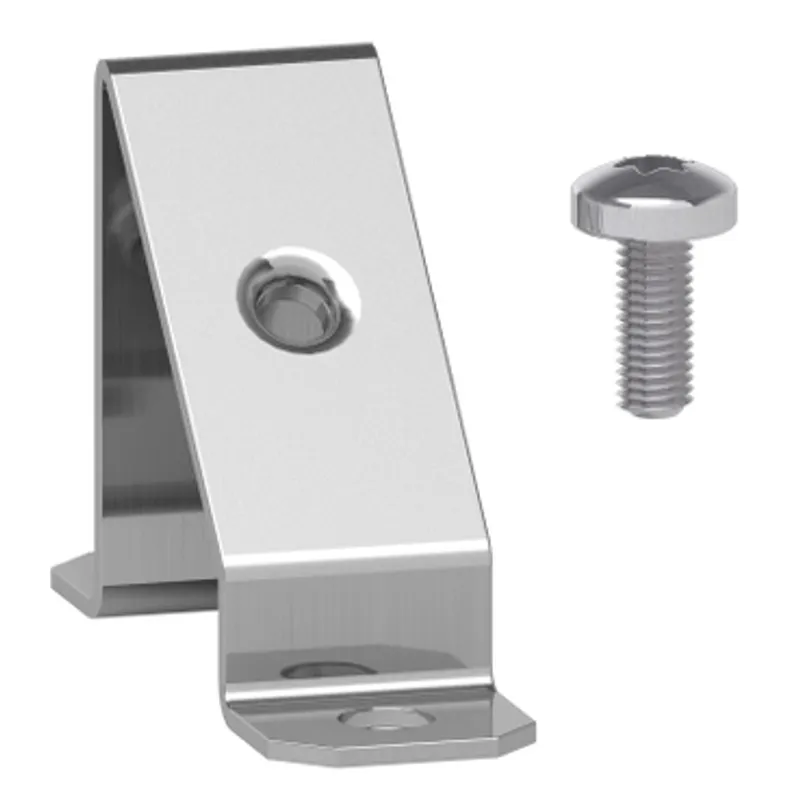

Schneider Electric NSYFB45
Rail support bracket for fixing rails at an angle of 45°, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel
- MPN
- NSYFB45
- EAN
- 3606480064432
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYFB45?
This is a rail support bracket for fixing rails at an angle of 45°. The product is suitable for PanelSeT SFN, PanelSeT SF & SFX, PanelSeT SM and PanelSeT SD electrical enclosures. It is made of zinc-coated steel. In case of PanelSeT SFN (PanelSeT SF) it is deigned to be mounted on the structure and/or mounting plates. In case of PanelSeT SM it is designed to be mounted on the bottom mounting rail and/ or mounting plates The set contains 1 bracket and fixing elements.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Rail fixing support |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT SFM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On structure of enclosure |
| Product destination | Rail |
| Device composition | 1 bracket, fixing elements |
| Quantity per set | Set of 10 |
| Material | Steel |
| Surface finish | Zinc coated |
| Height | 50 mm |
| Width | 70 mm |
| Depth | 220 mm |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 4.500 cm × 2.000 cm (L × W × H), 45.000 g |
| Package 2 | 10 BB1, 11.000 cm × 9.500 cm × 6.500 cm (L × W × H), 450.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYFB45: frequently asked questions
When can NSYFB45 be shipped?
NSYFB45 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYFB45 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYFB45 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYFB45, subject to availability and destination.
