Schneider Electric NSYEC751
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W700 D500mm, fixed by clips
- MPN
- NSYEC751
- EAN
- 3606480211485
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC751?

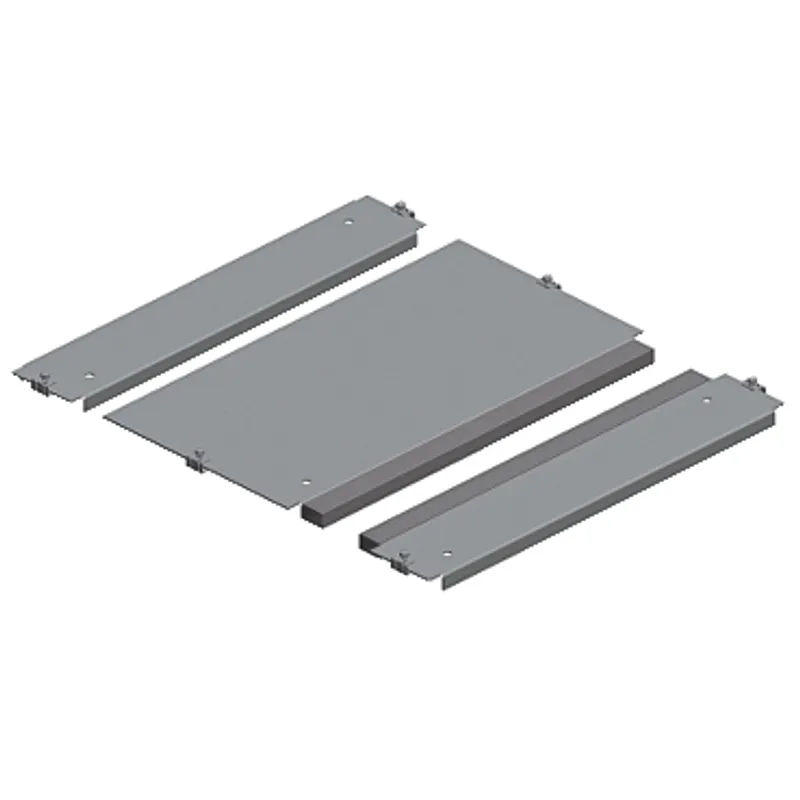

This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN, PrismaSeT and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 700 and 500 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose, Prisma application |
| Range compatibility | Prisma Prisma PH, PanelSeT PanelSeT SFP SFP |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Width | Nominal: 700 mm, Useful: 516 mm |
| Depth | Nominal : 500 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 55.000 cm × 25.000 cm × 3.000 cm (L × W × H), 3.156 kg |
| Package 2 | 60 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 203.000 kg |
