Schneider Electric NSYEC681

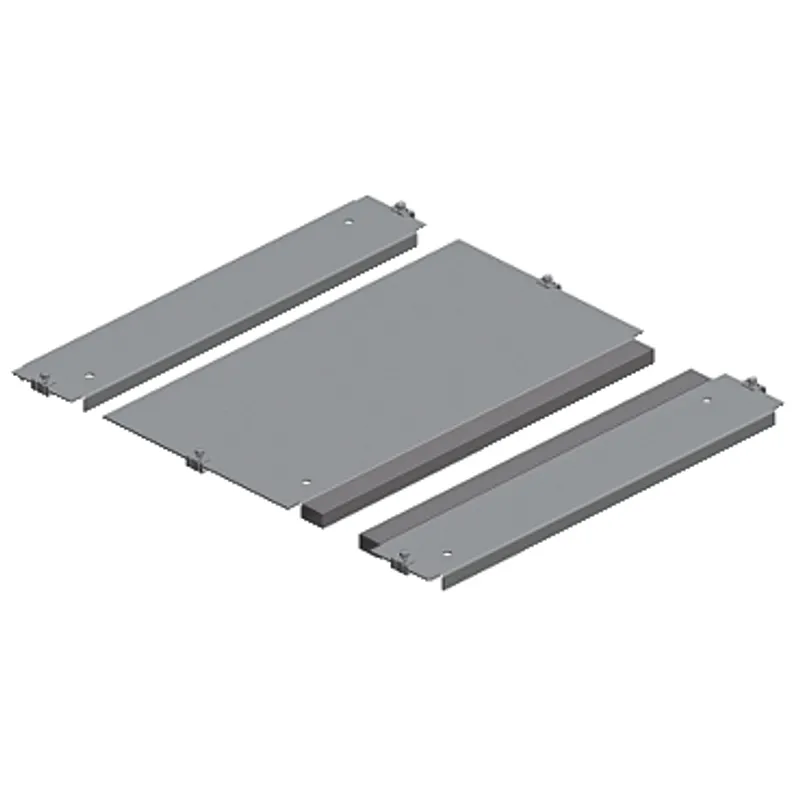

One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W600 D800mm, fixed by clips
- MPN
- NSYEC681
- EAN
- 3606485126272
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC681?
This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 600 and 800 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Electronic application, Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SFM SFM |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 35 mm |
| Width | Nominal: 600 mm, Useful: 416 mm, Real: 450 mm |
| Depth | Nominal : 800 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 46.000 cm × 35.000 cm × 3.500 cm (L × W × H), 4.512 kg |
| Package 2 | 30 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 149.000 kg |
