Schneider Electric NSYEC68
Plain cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W600 D800mm, fixed by clips
- MPN
- NSYEC68
- EAN
- 3606485126029
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

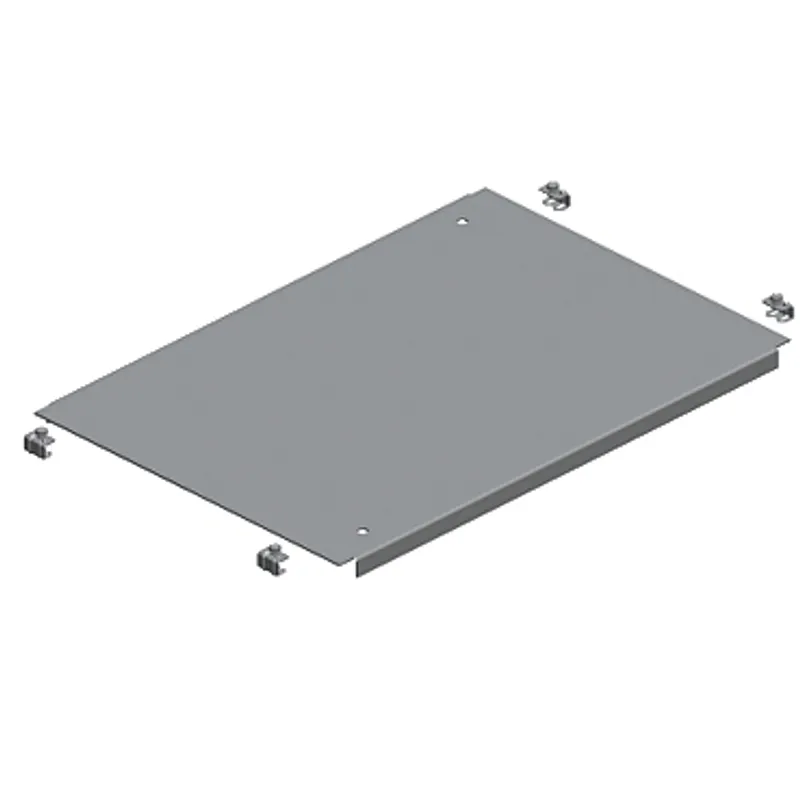

What is the Schneider Electric NSYEC68?
This is a multi-purpose plain cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 600 and 800 mm respectively. The set contains one plate with and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose, Electronic application |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SFM SFM |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | Plain |
| Device composition | Fixing elements, 1 plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 30 mm |
| Width | Nominal: 600 mm, Useful: 416 mm |
| Depth | Nominal : 800 mm, Real : 710 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 3.000 cm × 45.000 cm × 71.000 cm (L × W × H), 4.160 kg |
| Package 2 | 40 PAM, 120.000 cm × 100.000 cm × 65.000 cm (L × W × H), 179.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC68: frequently asked questions
When can NSYEC68 be shipped?
NSYEC68 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC68 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC68 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC68, subject to availability and destination.
